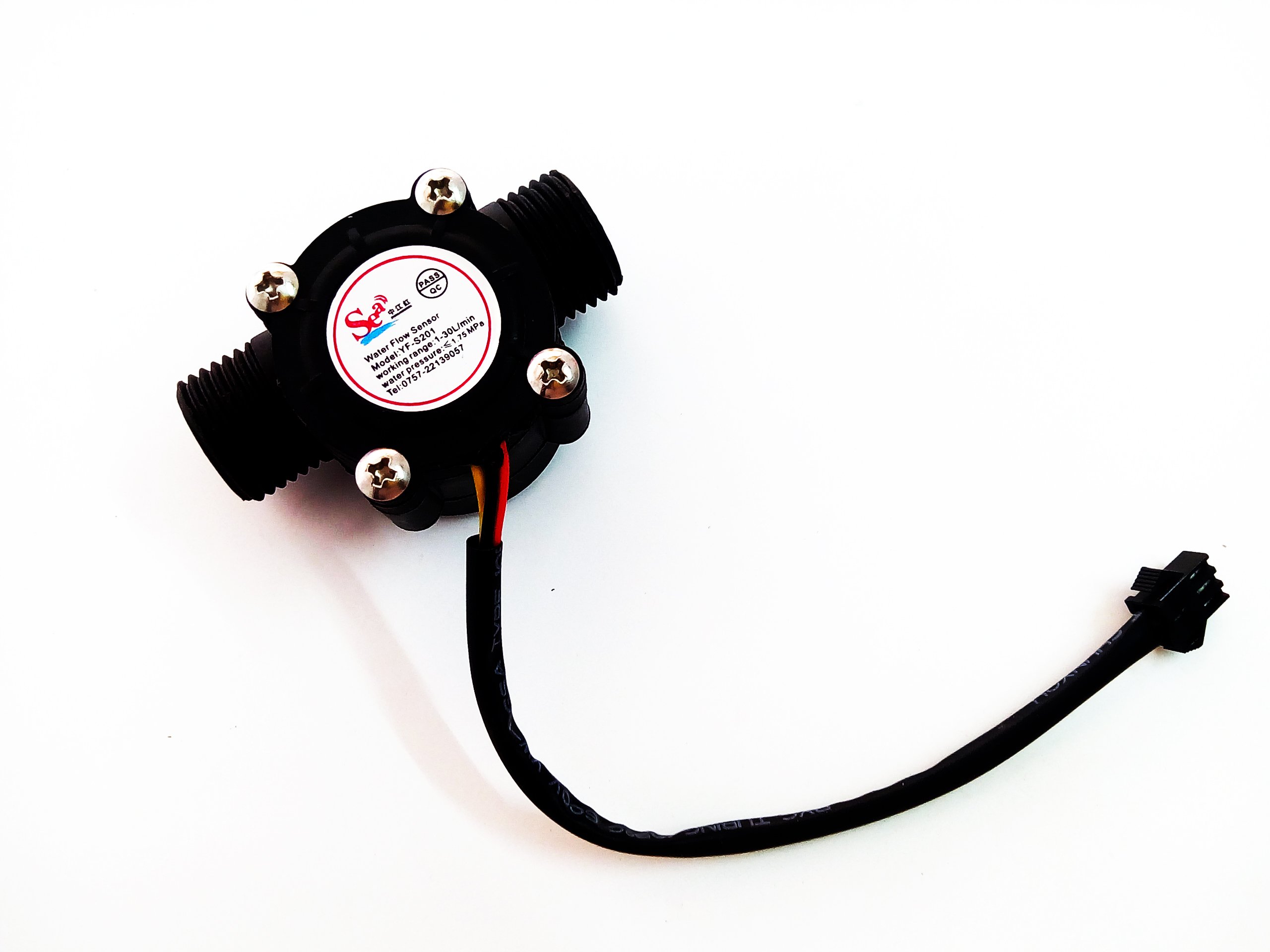

WATER FLOW SENSOR (SEA) YF-S201 FLOWMETER G1/2 1-30L/MIN

Description :

The WATER FLOW SENSOR YF-S201 is a flowmeter that measures the flow rate of water in pipes or other water delivery systems. It is designed to be compatible with G1/2 inch connections and has a flow rate range of 1-30 liters per minute. The sensor utilizes a rotating turbine to determine the flow rate, and the output is provided in electrical signals. This sensor is commonly used in applications such as water purification systems, aquariums, and irrigation systems.

Specification :

• Sensor Type: Turbine
• Model Number: YF-S201
• Flow Rate Range: 1-30L/min
• Connection Type: G1/2 thread
• Maximum Working Voltage: 24V DC
• Maximum Working Current: 15mA
• Operating Temperature Range: -25°C to 80°C
• Accuracy: +/-2%
• Output: 5-24V square wave
• Material: Brass, Stainless Steel
• Protection Level: IP65
• Dimensions: 65mm x 36mm x 31mm (L x W x H)
• Weight: 58g
• Application: Water flow measurement in industrial and household applications.
