W5500 ETHERNET SHIELD LAN NETWORK MODULE

Description :

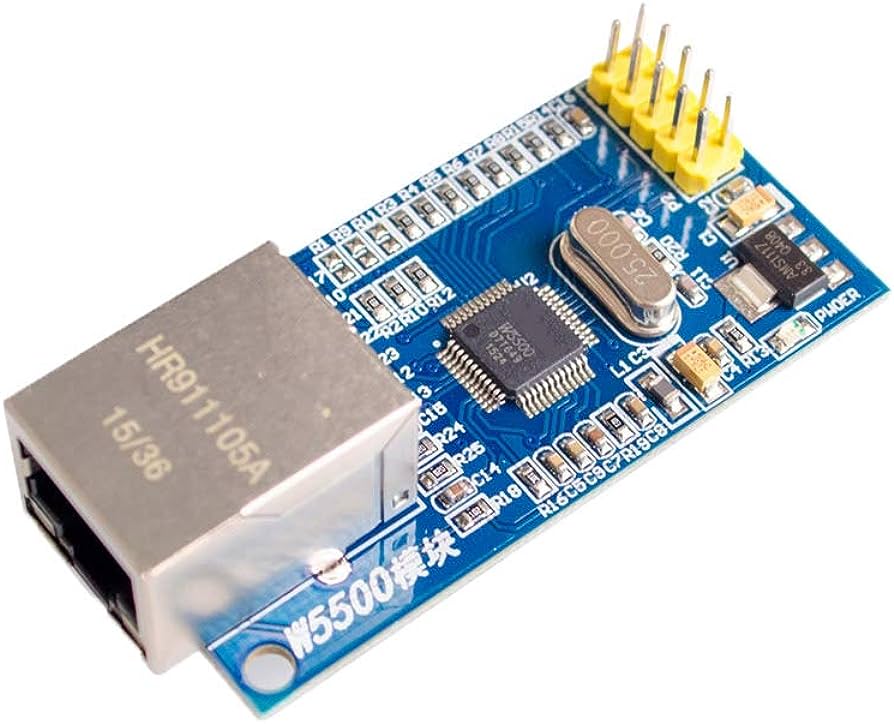

The W5500 Ethernet Shield LAN Network Module is an Ethernet shield that provides a seamless bridge between Ethernet and microcontrollers. It is compatible with a range of development boards such as Arduino and is designed to enable easy integration into existing network infrastructures.

The module is based on the W5500 Ethernet chip, which is an advanced TCP/IP stack for embedded systems. It supports a variety of protocols including TCP, UDP, ICMP, IGMP, ARP, and IPv4. It also has a hardware-based TCP/IP accelerator that provides high-speed data transfer.

Other features of the W5500 Ethernet Shield LAN Network Module include an RJ45 Ethernet port, onboard status LEDs for network activity and power, and a SPI interface for easy communication with microcontrollers. It also has a built-in 3.3V regulator to power the chip and other components.

Overall, the W5500 Ethernet Shield LAN Network Module is a powerful and versatile Ethernet shield that provides seamless connectivity between microcontrollers and Ethernet networks. Its rich features make it ideal for a wide range of applications including smart homes, IoT devices, and industrial automation.

Specification :

• Ethernet Interface: The Ethernet interface used is the W5500 chip which supports 10/100 Mbps Ethernet. It has an integrated MAC and PHY support.
• Interface Protocol: The module supports TCP/IP, UDP/IP, ARP, IGMP, ICMP, PING, PPPoE, and DHCP protocols.
• Input Voltage: The module can operate at an input voltage of 3.3V to 5V.
• LED Indicators: The module features LED indicators for power, network link, and network activity.
• Storage interface: It has an external 32kB SRAM.
• Data Transfer Rate: It can transfer data at a maximum rate of 80Mbps.
• Operating Temperature: The module can operate within a temperature range of -40℃ to +85℃.
• Compatibility: The module is compatible with various development boards such as Arduino, Raspberry Pi, and others.
• Size: The module measures 71.5mm x 53.5mm.
• Interface Type: The module features SPI interface type.
• Support network protocols: TCP/IP, UDP/IP, ARP, ICMP, IGMP, PPPoE, DNS, WSD/HTTP.
• Support microcontroller: STM32, AVR, Arduino, Raspberry Pi, etc.
• Overall, the W5500 Ethernet Shield LAN Network Module is a powerful and versatile hardware module for Ethernet communication over LAN networks, ideal for use in embedded systems.
