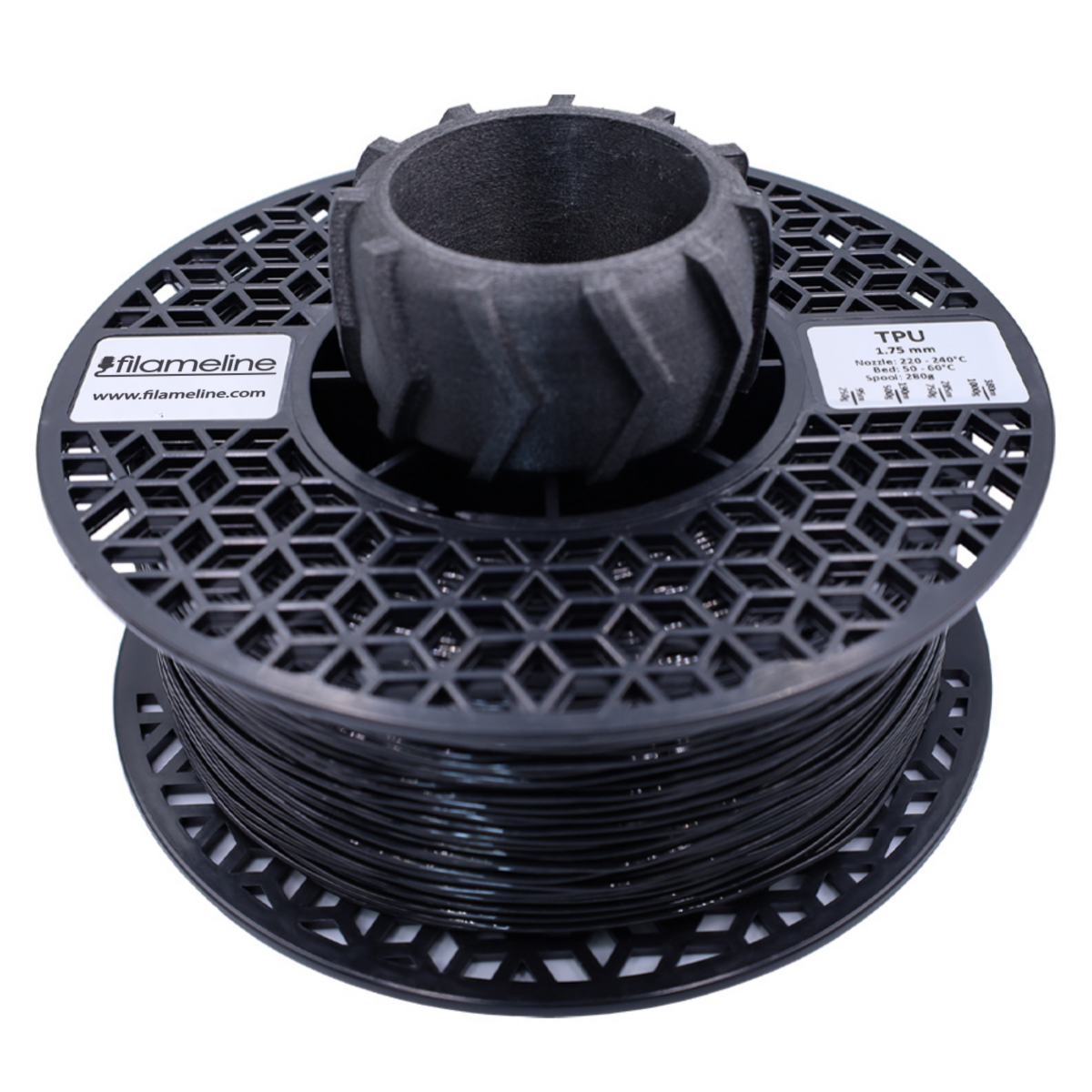

FILAMELINE TPU Flex Shore95A
Filameline TPU Flex (ShoreA95) Filament has easy printing, high chemical resistance and high flexibility. It is an engineering material specially designed for applications where high toughness and impact resistance are required. Its flexibility can be adjusted according to the filling rate. It can be used in indirect (Bowden) and direct (Direct Drive) extruders.
Physical and Chemical Properties
- hore 95A flexibility
- High elongation over 500%
- Ease of printing compared to similar flexible materials
- High chemical resistance
- Excellent layer adhesion
- Exceptional fatigue resistance
- Very low odor emitted during printing
- Low moisture absorption
- Maintaining flexibility at low temperatures
- Free of styrene and BPA
Filameline TPU FlexUsage Details
PRINTING DIFFICULTY DIFFICULT
Temperature Resistance 70 °C
Toughness Very High
Warping No
Odor NO
Print Surface Finish Very Difficult
DISSOLUTION BEHAVIOR VERY DIFFICULT
Flexibility High
Print Speed Low
Detailed Print Below 0.2 mm
Nozzle Abrasion None
Support Separation Difficult
NOTE:
It may be necessary to loosen the extruder thrust gears as much as possible before printing. It will be enough for the gears to be tightened to a level that can pull the TPU Flexible filament and make contact. In the slicing settings, the retraction value should be at the minimum level or off. Drying the exposed filament can improve print quality. (Drying: 65°C for 4 hours) Print speed is recommended in the range of 20-40 mm/s.
