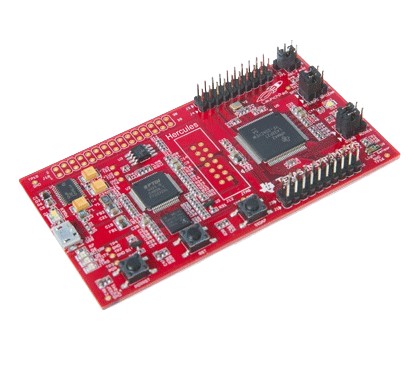

The Texas Instruments TMS570LS04 LaunchPad Development board is a low-cost and powerful evaluation platform designed to help engineers, students, and developers explore the capabilities of TI’s Hercules TMS570 Safety Microcontrollers. These MCUs are based on the ARM Cortex-R4F architecture, offering high performance, real-time response, and advanced safety features suitable for automotive and industrial applications.

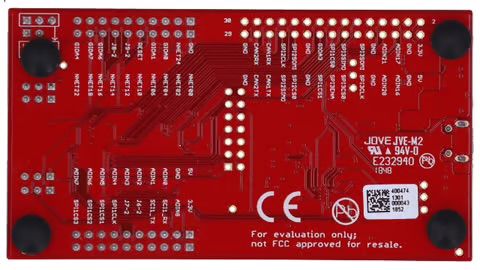

This LaunchPad provides convenient access to the microcontroller’s pins through clearly labeled dual-row headers, allowing seamless connection to sensors, modules, motors, and external circuits. With an on-board XDS100-class JTAG emulator, users can program, debug, and test applications directly without needing extra hardware.
The board includes built-in safety mechanisms such as ECC (Error Correction Code), self-test modules, and fault-diagnostic features, making it ideal for learning and developing safety-critical systems. Its rich peripherals—such as UART, SPI, I2C, PWM, CAN, and ADC—enable a wide range of embedded and real-time control projects.
Whether you’re building a robotic system, developing automotive electronics, or studying embedded safety concepts, the TMS570LS04 LaunchPad offers a robust, reliable, and beginner-friendly platform.
