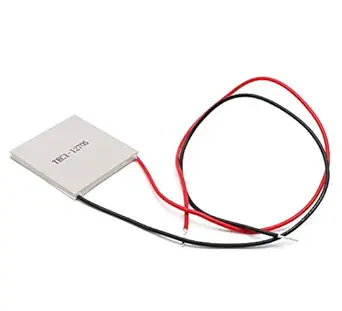

TEC1-12705 40*40 12V5A Thermoelectric Cooler Module peltier

• Type: TEC1-12705 Thermoelectric Cooler Cooling Plate Module 12V.
• Solid state, vibration free, noise-free. Easy to install and use.
• Incorporate both semiconductor technologies and electronic assembly techniques.
• Great for your own custom car drink warmer/cooler as well.
• Used for many applications from CPU coolers to alternate power sources.

Specifications:

Size:40*40*3.8mm
Internal resistance:2.4~2.7Ω(Ambient temperature 23±1℃, 1kHZ Ac test)
Maximum temperature difference:△Tmax(Qc=0) Above 61℃
Work current:Imax=5A(maximum voltage 15.4V 5A at startup)
Rated voltage:DC12V（Vmax：15.4V）
Cooling power:Qcmax 50W
Assembly pressure:85N/cm2
Temperature range: -55℃～83℃ (Excessively high ambient
temperature will directly affect the cooling efficiency)
