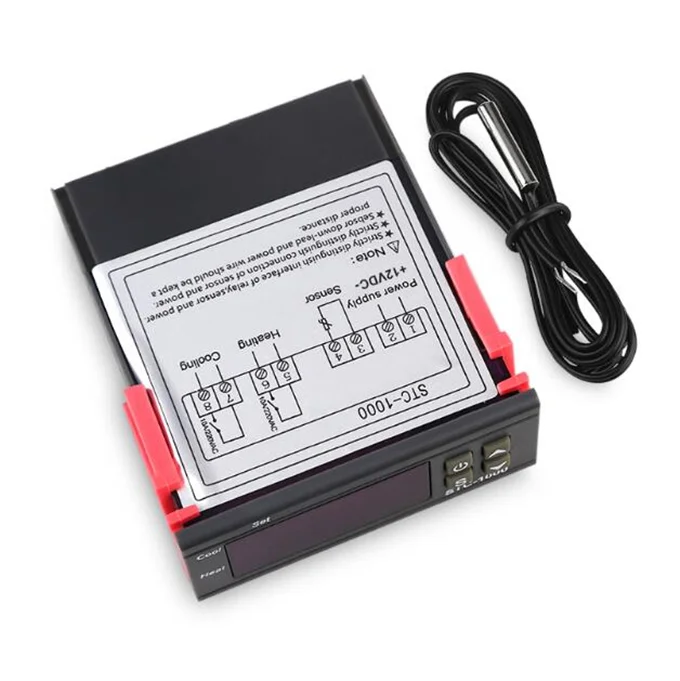

STC-1000 DC12V Digital Temperature Controller Microcomputer Thermostat Switch With 1m Cable

Model: STC-1000

Temperature control range: -50 ~ 110 ° C
Resolution: -9.9 to 99.9 is 0.1° C , 1 ° C temperature ranges other
Measurement Accuracy: 0.1 ° C
Control accuracy: 0.1 ° C
Hysteresis accuracy: 0.1 ° C
Refresh rate: 0.5 S
High temperature protection: 0 ~ 110 ° C
Input Power: AC 110V-220V / DC 12-72V
Measuring inputs: NTC (10K 0.5%) Waterproof sensor
Output:10 a relay all the way
Environmental requirements: -10 ~ 60 Degrees Celsius Humidity 20% -85%

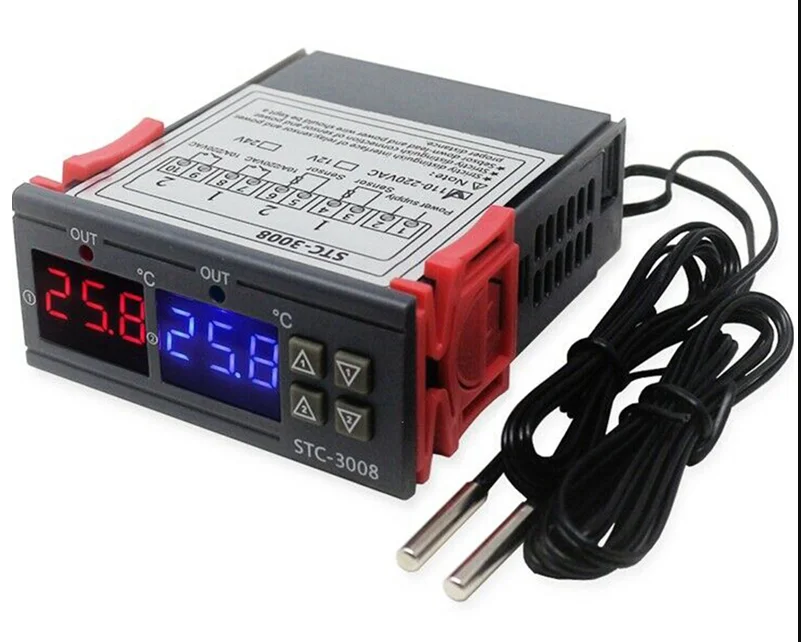

Power consumption: Static current:<=35MA, Attract current:<=65MA Easy and convenient to use Size: Approx. 48 (L) x 40 (W) x 14 (D) mm Total weight:20 g Package weight:30 g Model: STC-3008 Display Type:Digital Style:Standing Station Temperature sensor: NTC 10K Sensor length:1.0m Temperature measuring range: -55 ° C ~ 120 ° C Resolution: 0.1 ° C Accuracy:±1° C Power supply: 110-220VAC 50/60Hz, 12V DC , 24V DC(Please choose power supply when ordering) Power consumption: <3W Storage temperature: -30 ° C ~ 75 ° C Relative humidity: 20% ~ 85% (No condensate) Relay contact capacity: Two Relay Cool 10A/240VAC; Heat 10A/240VAC Model: STC-3018 Display Type: Digital Temperature sensor: NTC 10K Senor length:1.0m Temperature measuring range: -55 ° C ~ 120 ° C / -66°F~248°F Resolution: 0.1 ° C Accuracy:±1° C Power supply: 110-220VAC 50/60Hz, 12V DC , 24V DC(Please choose power supply when ordering) Power consumption: <3W Storage temperature: -30 ° C ~ 75 ° C Relative humidity: 20% ~ 85% (No condensate) Relay contact capacity: 10A/240VAC; Heat 10A/240VAC Model: STC-3028 Input voltage: AC110~220V± 10%, DC24V, DC12V Measuring temperature range: -20°～+80° Measuring humidity range: 00%RH～+100%RH Accuracy: ±1°, 0.1%RH Relay output contact capacity: 10A/240VAC Shell material: PC + ABS fireproof Sensor length: 1m
