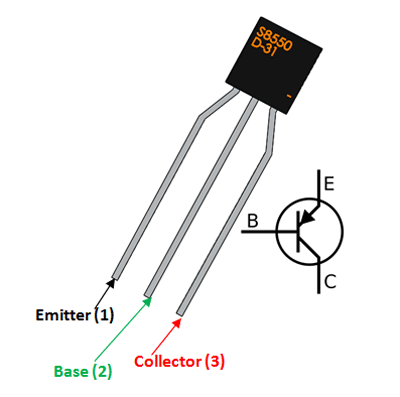

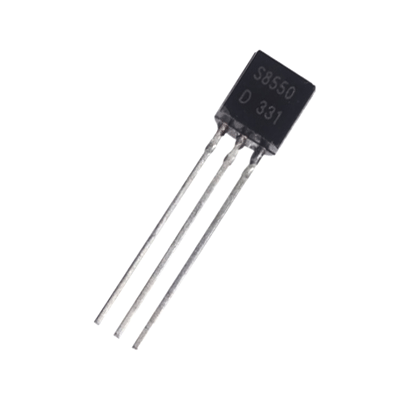

S8550 Pinout Configuration
|
Pin Number |
Pin Name |
Description |
|
1 |
Emitter |
Current Drains out through emitter, normally connected to ground |
|
2 |
Base |
Controls the biasing of transistor, Used to turn ON or OFF the transistor |
|
3 |
Collector |
Current flows in through collector, normally connected to load |
Features
- Low Voltage, High Current PNP Transistor
- Continuous Collector current (IC) is 500mA
- Collector-Emitter voltage (VCEO) is -25 V
- Collector-Base voltage (VCB0) is -40V
- Emitter Base Voltage (VBE0) is -5V
- Current Gain (hFE), 85 to 300
- Commonly used as Class B Push-pull transistors
