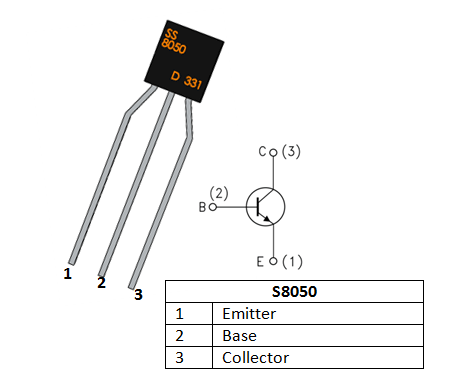

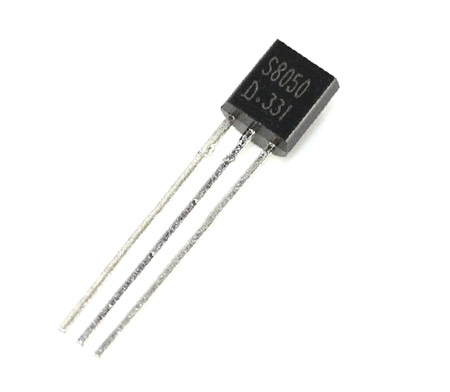

S8050 Pin Description
|
Pin Number |
Pin Name |
Description |
|
1 |
Emitter |
Current Drains out through emitter |
|
2 |
Base |
Controls the biasing of transistor |
|
3 |
Collector |
Current flows in through collector |
Features and Specifications
- Low Voltage, High Current NPN Transistor
- Small Signal Transistor
- Maximum Power: 2 Watts
- Maximum DC Current Gain (hFE) is 400
- Continuous Collector current (IC) is 700mA
- Base- Emitter Voltage (VBE) is 5V
- Collector-Emitter Voltage (VCE) is 20V
- Collector-Base Voltage (VCB) is 30V
- High Used in push-pull configuration doe Class B amplifiers
- Available in To-92 Package
Alternative NPN Transistors
S9014, MPSA42, SS8050, BC547, 2N2369, 2N3055, 2N3904, 2N3906
S8050 Equivalent Transistors
2N5830, S9013
