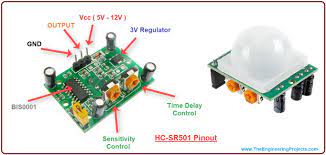

Description:
- 100% Brand New.
- PCB Dimensions: Approx. 32 x 24mm
- Screw hole distance 28mmscrew aperture 2mm
- Sensor lens size: (diameter): 23mm (default)
- Operating voltage: DC5V to 20V
- Static power consumption: 65 microamps
- Level output: 3.3Vlow 0V
- Delay time: adjustable (0.3 seconds to 18 seconds)
- Blockade Time: 0.2 seconds
- Trigger Mode: L can not be repeatedH can be repeated default value H
- Sensing range: less than 120 degree cone angle of less than 7 meters
- Operating temperature: -15 to +70 degrees
- Automatic induction: when someone enters its sensing range input highpeople leave the sensor range automatic delay off high. Output low
Specification :
- Detection range: Up to 7 meters and 110 degrees
- Operating voltage: DC 5V to 20V
- Quiescent current: <50uA
- Output signal: High (3.3V) or low (0V)
- Signal delay time: Adjustable from 5 seconds to 300 seconds
- Trigger mode: Repeatable or non-repeatable
- Temperature range: -20℃ to +80℃
- Circuit board dimensions: 32mm x 24mm x 25mm
