Not Assembly Full Set DIY 3DOF Robot Arm Manipulator Claw +3pcs MG995+3pcs Servo Horn (ND003 SET=1*ND003+3*AA022+3*NC088)

Description of the product:

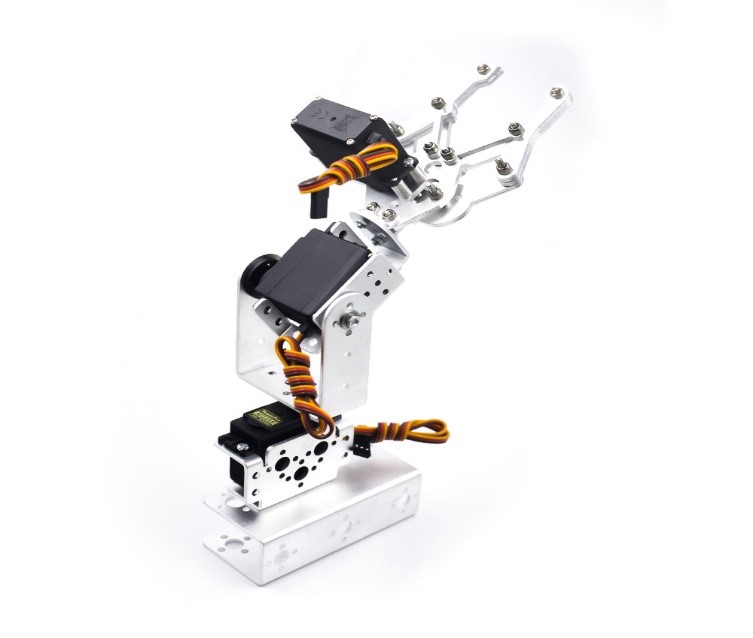

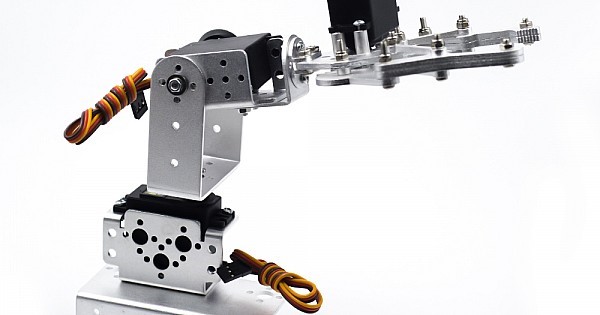

 This is Full Set DIY 3DOF Robot Arm Manipulator Claw+3pcs Servo Brackets (Not Assembly) Kit. Full Set DIY 2DOF Robot Arm Manipulator Claw +3pcs Servo Brackets (Not Assembly) is a robotic arm kit which includes manipulator claw, aluminum bracket and accessories like nuts, bolts etc.This kit is very useful to make a robotic arm which is used in many applications like move a material from one place to another place (Weight not exceed than 500 gm).

Specifications and Features:

1. Aluminum Matte Coat Pan and Tilt for the horizontal surface, unassembled
2. Servo bracket used in the shoulders and knees or another joint of humanoid robots, biped robots etc.
3. Can plant a camera or IR sensor for Robot.
4. Package total weight: 112 gm

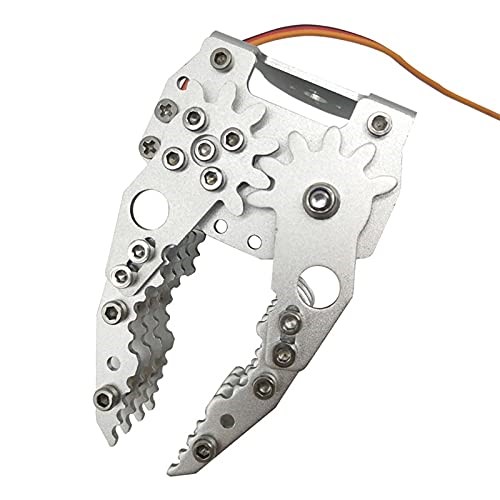

5. Clamp Claw:
   1. Weight capacity is about 300 gm objects
   2. Material: Full aluminum alloy
   3. Weight: About 64gm
   4. Maximum angle: 54mm
   5. Total length: 110mm (paw when closed overall longest length)
   6. Total width: 94mm (the claws open when the maximum overall width)
6. Compatible with our MG995 Servo

Package Includes:

• 1 x Aluminum Manipulator Claw.
• 1 x Accessories sets and Ball bearing
• 1 x Aluminum Alloy multi-function servo bracket.
• 1 x Aluminum Alloy Long U-type servo bracket.

3 x MG995 Servo motor.
