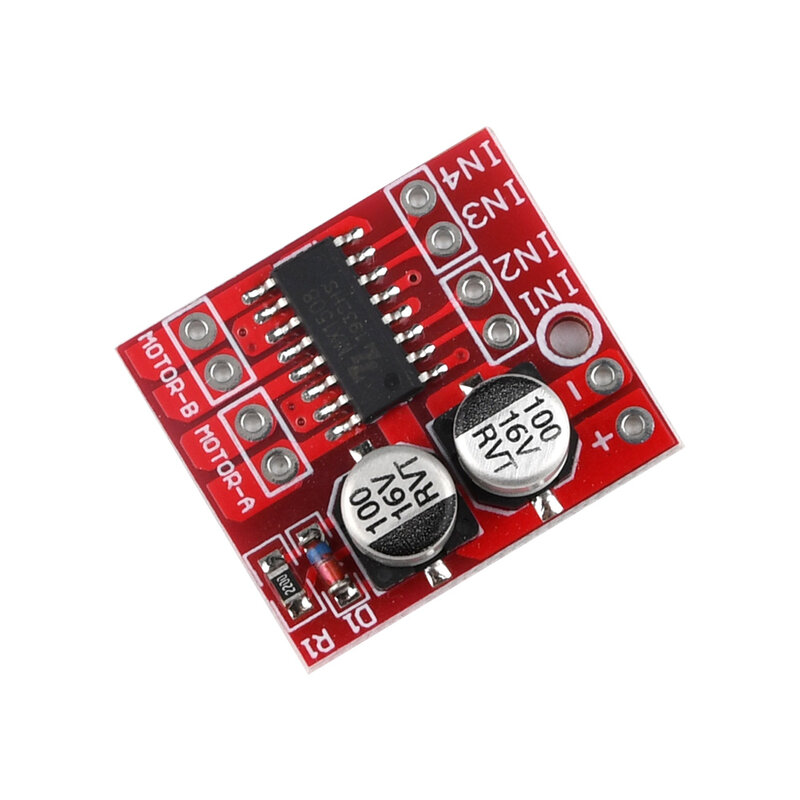

MX1508 Mini Dual Channel 1.5A DC Motor Driver Module
In stock
JOD 2.000 JOD 3.000
MX1508 is a 1.5A Mini Dual Channel DC Motor Driver Module an alternate of L298 or L298N PWM Speed Controller is a newly designed H Bridge motor driver module for DIY robotics projects. This Mini Dual Channel DC Motor Driver Module MX1508 PWM Speed Controller module is ideal for use in battery-powered smart cars, toy cars, and robots. Supply voltage 2V ~ 10V can drive two DC motors or 4-wire 2-phase stepper motors and can achieve forward rotation or reverse rotation, it is possible to adjust the rotation speed. Each PWM Speed Controller Board can provide a continuous current of 1.5A, peak current up to 2.5A, thermal protection, and can be automatically restored.
Features of MX1508 Motor Driver
- The dual H-bridge motor driver can drive two DC motors or a 4-wire two-phase stepper motors
- Built-in TSD, without worrying about motor stall
- Ultra-small size, suitable for assembly and car
| Pin Name | Pin Description |
| IN1 | Input 1 Signal for Motor A |
| IN2 | Input 1 Signal for Motor A |
| IN3 | Input 3 Signal for Motor B |
| IN4 | Input 4 Signal for Motor B |
| + | Positive Supply 2-10 Volt |
| – | Supply Ground |
Specifications of MX1508 Motor Driver
| Module supply voltage: | DC 2V-10V |
| Signal input voltage: | DC 1.8-7V |
| Single working current: | 1.5A |
| Peak current: | up to 2.5A |
| Low standby current: | (less than 0.1uA) |
| Size: | 24.7 x 21 x 7mm |
| Mounting hole diameter: | 2 mm |
