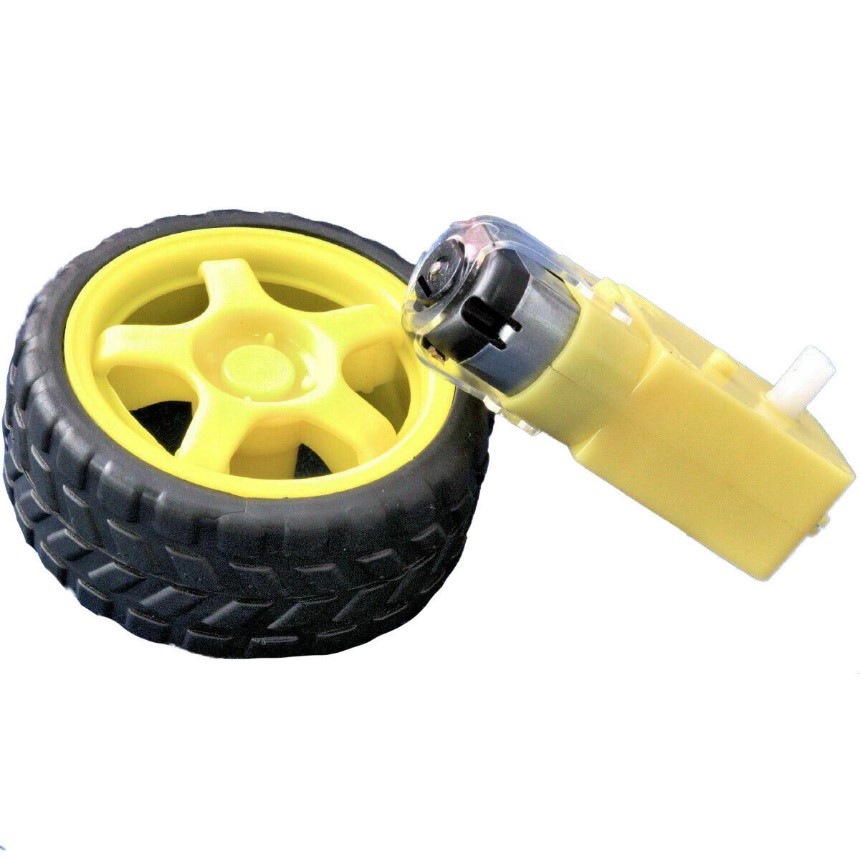

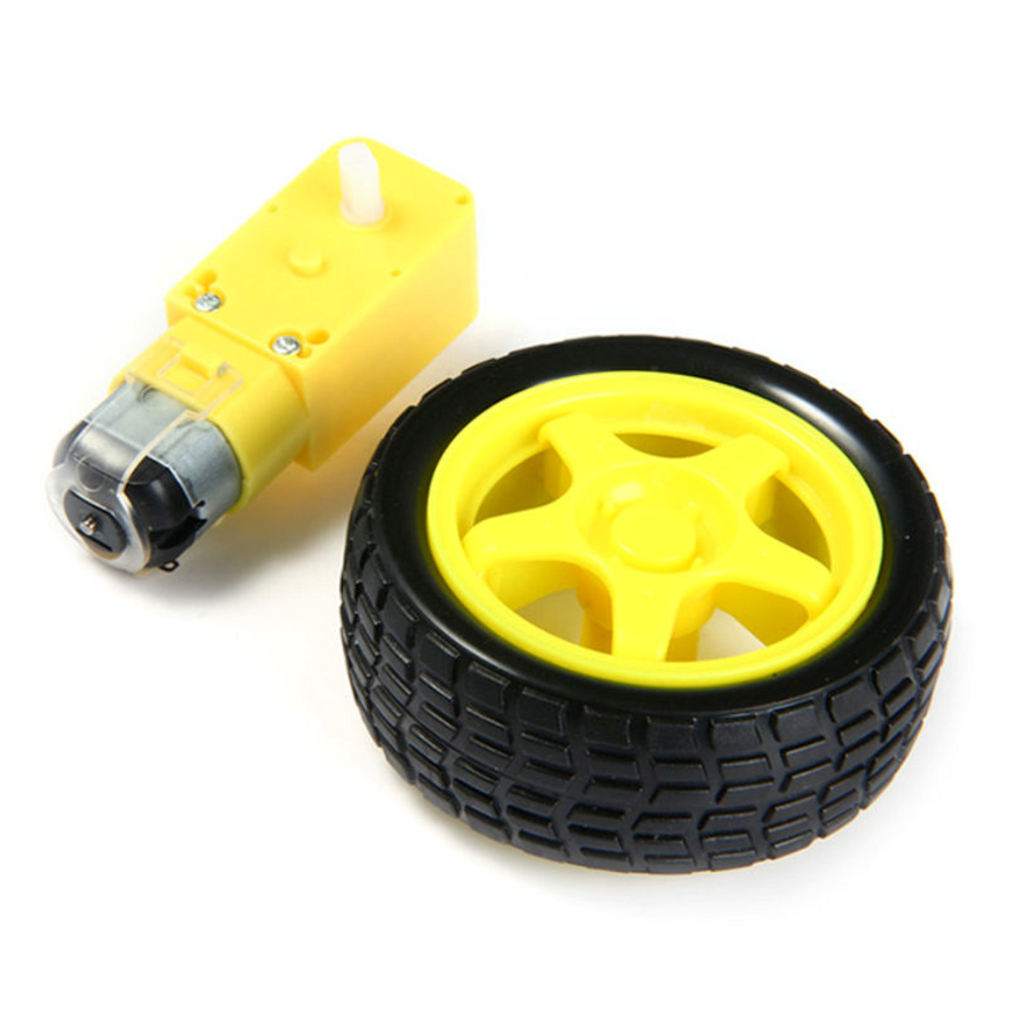

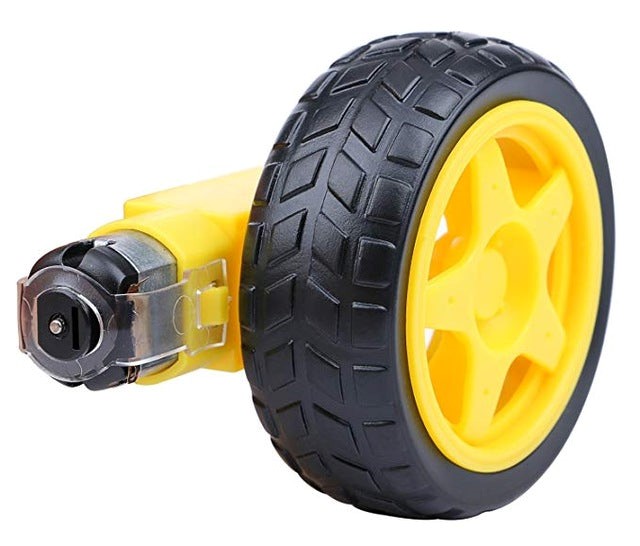

Motor + Wheel Robot Smart Car Set

Description of the product:

Motor + Wheel Robot Smart Car Set comes with Single Shaft Plastic Gear Motor BO-1series gives good torque and Tire. The motor has rpm at lower operating voltages, which is the biggest advantage of these motors. A small shaft with matching wheels gives an optimized design for your application or robot. Mounting holes on the body & lightweight makes it suitable for in-circuit placement. This motor is a perfect choice for lightweight Robots.

Features:

• Two sets of DC motors and wheels, with integrated gearbox.
• Great for robotic platforms, line-tracing robots, etc.
• The wheel can be mounted on either side.
• The gear motor works well between DC 3V and 6V.
• Reduction rate: 48:1.

Specifications:

1.Motor:

• Voltage: DC 3V - 6V
• Current: 100mA - 120mA
• Reduction Rate: 48:1
• RPM (with Tire): 100 - 240
• Car Speed (M/minute): 20 - 48
• Motor Size: Approx. 70 * 22 * 18mm
• Noise: <65dB

2.Tire:

• Center Hole: 5.3 * 3.66mm
• Tire Size: 65 * 28mm
• Tire Weight(1pc): 32g

Package List:

• 1 * Plastic Tire Wheel
• 1 * DC Gear Motor
