Motor Speed Controller 1803BK PWM Low Voltage Motor Speed Regulator Switch PWM Adjustable Drive Module DC 1.8V 3V 5V 6V 12V 2A
In stock
JOD 4.000 JOD 7.000

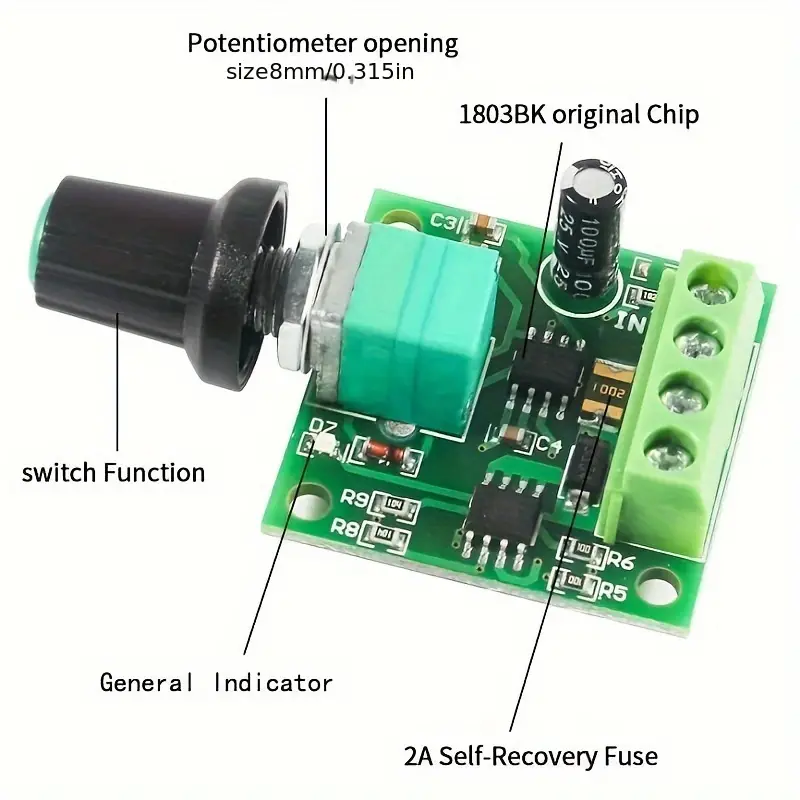

- This Brand New 1803BK DC Motor Speed Controller allows controlling the direction of a DC the motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully the product adjust from 0%-100%. - With a self-recovery fuse 2A and a Power-On LED light. Enable to provide a continuous current of 2A to your DC motor or other DC load.
Specifications:
Input supply voltage:1.8V-15VDC
The max output power: 30W
The max continuous output current: 2A
Duty Cycle adjustable: 0%-100%

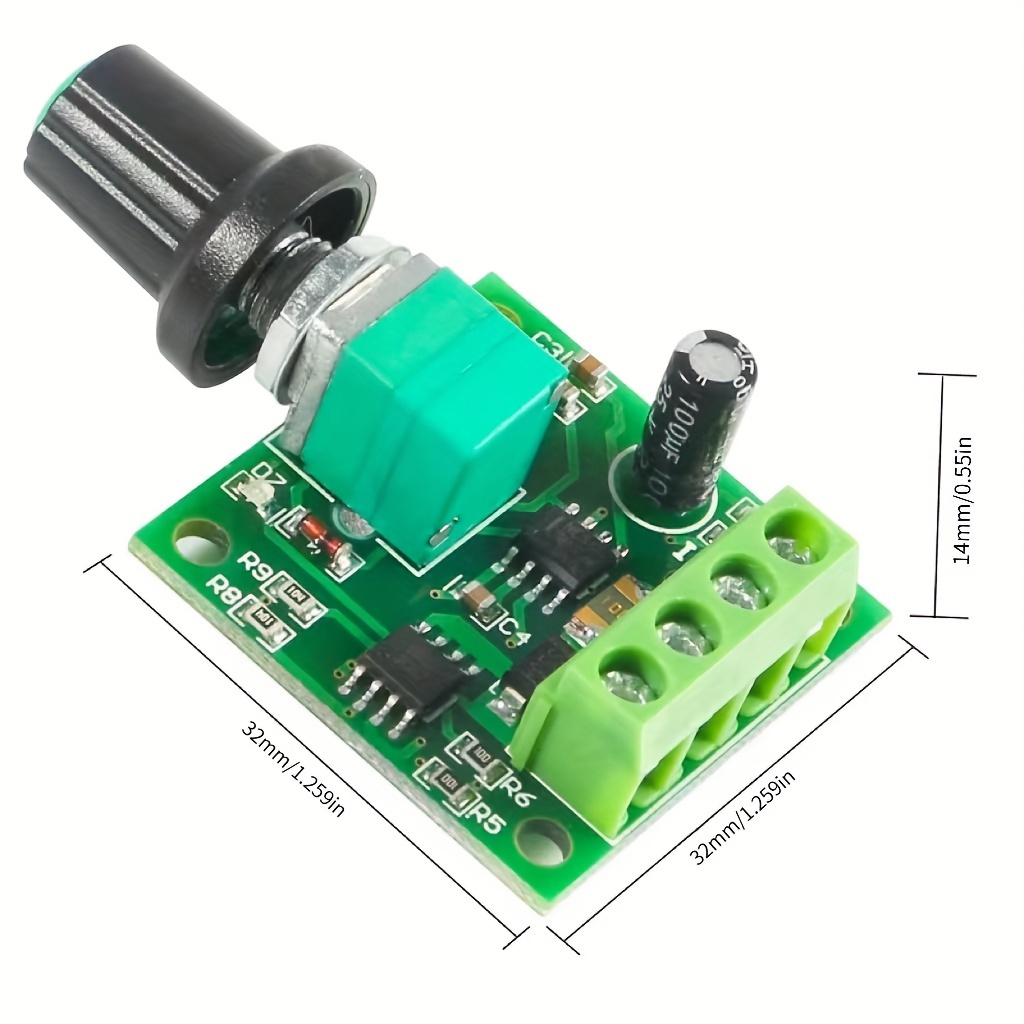

Size: approx. 32*32*15mm/1.25*1.25*0.59''
Net weight: approx. 14g
Note: DC motor speed regulator DC power supply, do not be directly connected to household 220V AC. Please allow 1-3mm differs due to manual measurement. Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your under
