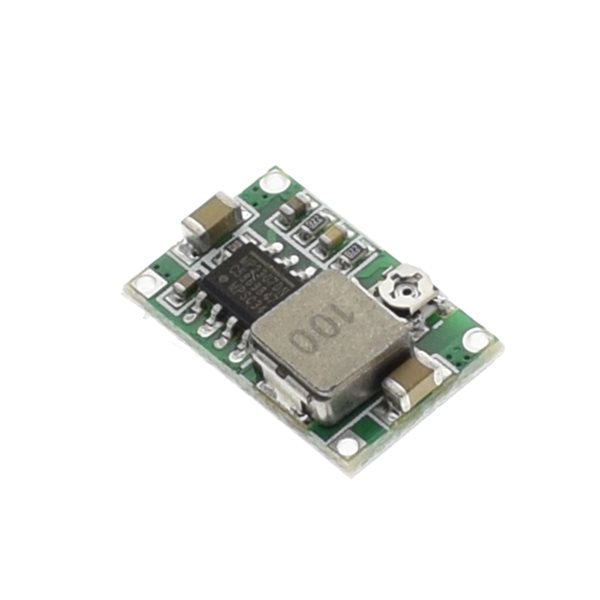

MINI 360 DC-DC BUCK CONVERTER STEP DOWN MODULE 4.75V-23V TO 1V-17V
In stock
JOD 1.500 JOD 2.000
Description:
- RC Airplane Module Mini 360 DC-DC Buck Converter Step Down Module 4.75V-23V to 1V-17V 17x11x3.8mm Mini360 New LM2596
- Model Name: Mini-360 (ultra small size DC-DC synchronous rectifier buck module)
- Module Properties: non-isolated buck
- Rectification: synchronous rectification
- Input voltage: 4.75V-23V
- Output voltage: 0V-17V
- Output Current: lowering the value of 3A, long 1.8A
- Conversion efficiency: 96% (maximum)
- Switching Frequency: 340KHz
- Output ripple: 30mV (no-load)
- Load regulation: ± 0.5%
- Voltage regulation: ± 2.5%
- Working temperature: -40 Celsius to +85 Celsius
- Features: Use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient.
Specification :
- Input Voltage Range: 4.75V-23V
- Output Voltage Range: 1V-17V
- Output Current: Maximum 1.8A (Recommended for 1.5A)
- Conversion Efficiency: Up to 96%
- Switching Frequency: 340 KHz
- Operating Temperature: -40°C to +85°C
- Short Circuit Protection: Yes
- Overheat Protection: Yes
- Dimensions: 17 x 11 x 3.8 mm (L x W x H)
- Weight: 1.6 grams
