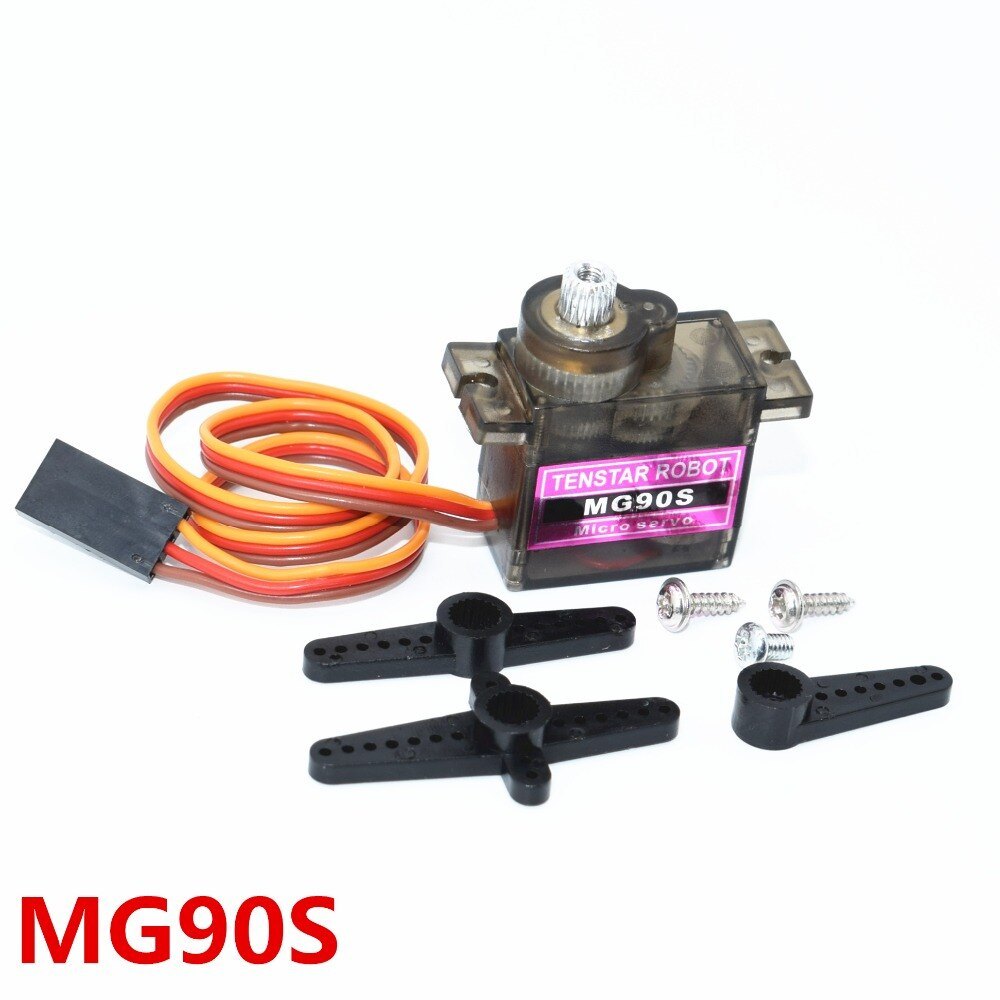

MG90S METAL GEAR MINI SERVO MOTOR 180 DEGREE NORMAL QUALITY
Description :
The MG90 and MG90S are small servo motors commonly used in hobby projects such as remote-controlled vehicles, robotics, and model airplanes. They are almost identical, with the main difference being that the MG90S has metal gears, while the MG90 has plastic gears.
The motors have a 180-degree rotation range and can operate on a voltage between 4.8V and 6V. They also have a torque of 2.2kg/cm at 6V, which means they are capable of moving small loads.
The motor has a 3-pin female connector for easy connection to a control board or microcontroller. The connector provides power, ground, and signal connections, and the motor is controlled through a pulse-width modulation (PWM) signal.
The 180-degree arm lever is an attachment that can be used to convert the rotational motion of the servo motor into linear motion. The arm lever is 28mm long, which means it moves a distance of 28mm when the servo rotates through its full range.
The 250V 5A SPDT (Single Pole Double Throw) momentary plastic micro limit switch is a small switch used to detect the end position of the linear motion generated by the arm lever. The switch has three pins: a common pin, a normally open pin, and a normally closed pin. When the arm lever reaches its end position, it activates the switch, which can be used to trigger a circuit or stop the motor.
Overall, the MG90 and MG90S micro servo motors are high-quality components suitable for a wide range of hobby projects
Specificatios :
- Type: Micro servo motor
- Model: MG90/MG90S
- Rotation range: 180 degrees
- Operating voltage: 4.8V - 6V
- Torque: 2.2kg/cm at 6V
- Gear material: Plastic (MG90) or Metal (MG90S)
- Connector: 3-pin female
- Arm lever length: 28mm
- Limit switch type: SPDT (Single Pole Double Throw)
- Limit switch rating: 250V, 5A
- Limit switch pins: Common, Normally Open, Normally Closed
- Limit switch action: Momentary
- Housing material: Plastic
- Dimensions: 23mm x 12.2mm x 29mm (L x W x H)
- Weight: 13.4g
