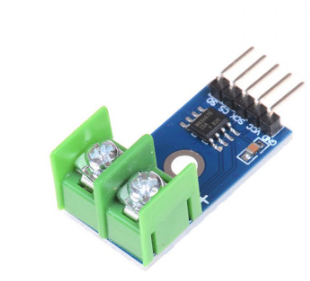

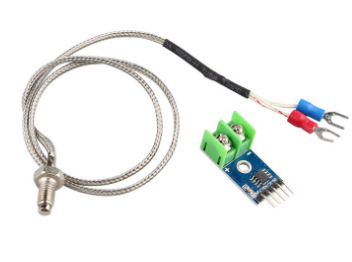

MAX6675 Module + K Type Thermocouple Sensor can Measure 1024 Degrees
In stock
JOD 8.000 JOD 10.000
- Internal integrated cold junction compensation circuit;
- With a simple three serial SPI interface;
- Temperature signal can be converted into 12-bit digital
- Embedded thermocouple break detection circuitry.
- High impedance differential inputs.
- Operating Voltage(VDC): 3 to 5.5
- Temperature Range(°C): 0 to +1024
- Cold Junction Compensation Range(°C): -20 to +80
