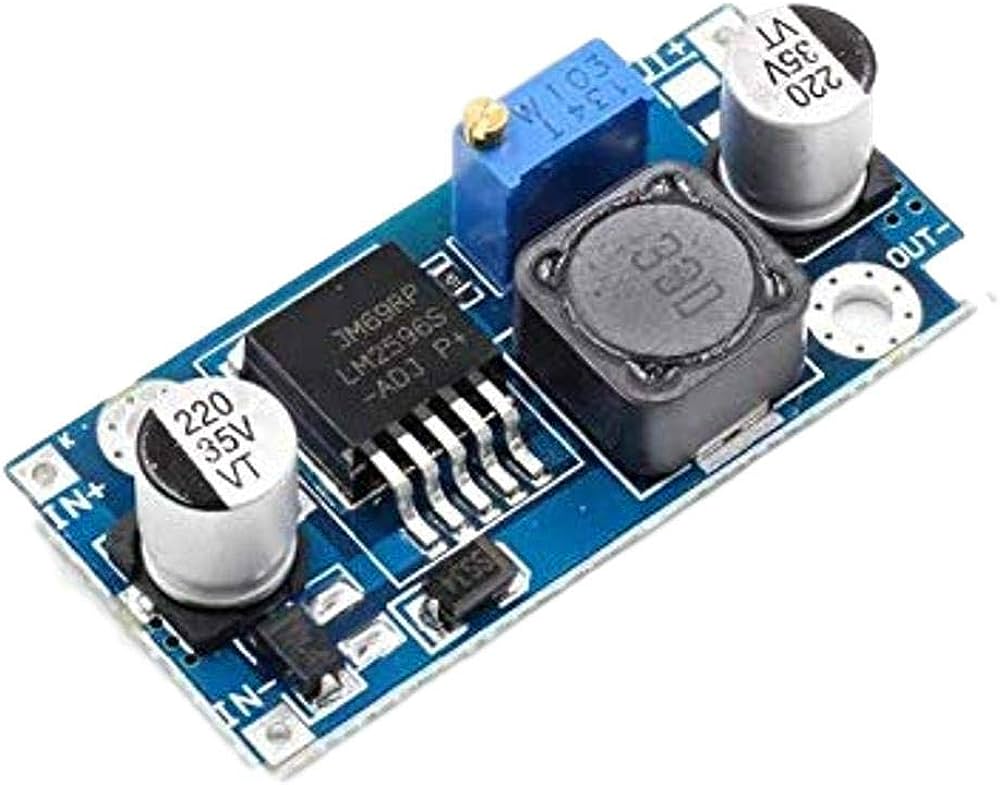

LM2596S-ADJ LOW-RIPPLE HIGH EFFICIENCY STEP DOWN MODULE BUCK CONVERTER
Description :
The LM2596S-ADJ Low-Ripple High Efficiency Step Down Module Buck Converter is a type of DC-DC power converter that is commonly used in electronic circuits to convert a higher voltage input into a lower voltage output. This module is designed to provide a stable, adjustable, and low-ripple DC output voltage from a higher input voltage source.
The LM2596S-ADJ module uses a switching regulator topology to achieve high efficiency, low heat dissipation, and low output voltage ripple. The input voltage can range from 4.5V to 40V, and the output voltage can be adjusted from 1.25V to 37V using a potentiometer.
The module has a maximum output current of 3A, which makes it suitable for a wide range of applications, including powering microcontrollers, sensors, LEDs, and other electronic components. It also has built-in protection features such as over-temperature and over-current protection, which ensure safe and reliable operation.
The LM2596S-ADJ module is compact and easy to use, with a small form factor and screw terminal connectors for easy integration into electronic circuits. It is a popular choice among hobbyists, engineers, and electronics enthusiasts due to its high efficiency, low output ripple, and easy adjustability.
Overall, the LM2596S-ADJ Low-Ripple High Efficiency Step Down Module Buck Converter is a versatile and reliable power converter that provides stable, adjustable, and low-ripple DC output voltage from a higher voltage input source. Its high efficiency and built-in protection features make it an ideal choice for a wide range of electronic applications.
Specification :
- Input Voltage Range: 4.5V to 40V DC
- Output Voltage Range: 1.25V to 37V DC (adjustable)
- Maximum Output Current: 3A
- Switching Frequency: 150kHz
- Efficiency: Up to 92%
- Ripple Voltage: <30mV
- Protection Features: Over-temperature, Over-current, Short-circuit
- Operating Temperature Range: -40°C to +85°C
- Dimensions: 43mm x 21mm x 14mm
