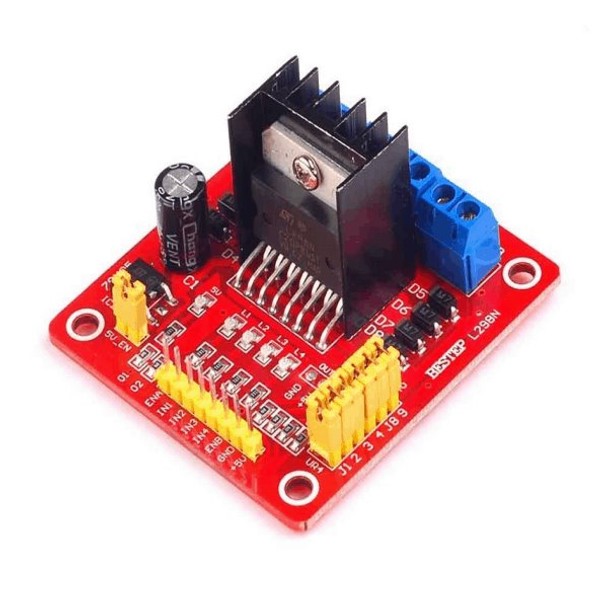

L298N Dual H Bridge V1 DC Stepper Motor Driver Module Controller Board

Description

L298N Dual H-Bridge Stepper Motor Driver Controller Module Board For . It uses ST L298N chip, can directly drive two 3V - 30V DC motor, and provide a 5V output interface, power for 5V single chip circuitry, support 3.3V MCU control. Can easily control the DC motor speed and direction, also control the 2 phase stepper motor.

Features

- Control chip: L298N.
- Driven part of the terminal supply voltage: VMS 5V-35V.
- Driven part of the peak current IO: 2A per bridge.
- The logical part of the terminal supply voltage: 4.5V-5.5V.
- The logical part of the operating current range: 0mA-36mA.
- Control signal input voltage range: 4.5V-5.5V (high) / 0V (low).
- Max power consumption: 20W.
- Operating temperature: -25°C -130°C.
- Size: 55 x 60 x 30cm.

Package Including

1 * L298N Dual H Bridge DC Stepper Motor Driver Module Controller Board
