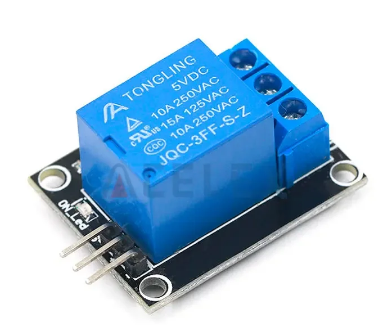

KY-019 5V One Channel Relay Module Board Shield
In stock
JOD 1.250 JOD 2.000
Description of product:
The relay coil drive voltage is 5V, and the input control level can also be within 5V.
1. Output drive capacity: 250VAC-10A, 125VAC-10A, 30VDC-10A, 28VDC-10A.
2. Easy to use, each output group has a simple 3-wire structure, and 6 output terminals are reserved.
3. The input is directly connected to the MCU IO port or digital circuit, and the input high-level relay The device is closed, and the input low level relay is released.
4. Working voltage 5V, pull-in current about 70mA per circuit, with relay status indication light.
5. Full chip components. Reasonable drive circuit design, using 8050 transistor to drive the relay Electrical action.
6. There are fixed screw holes for easy installation, module size: 22*34*17mm.
