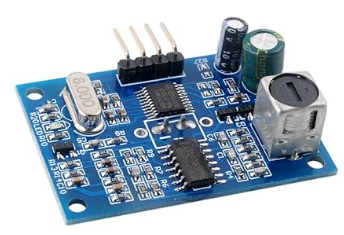

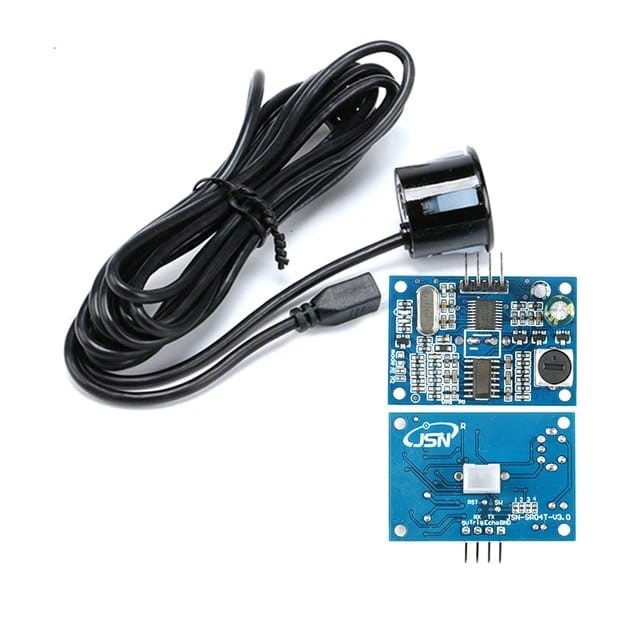

JSN-SR04T Integrative Waterproof Distance Measuring Ultrasonic Sensor Module

Description of product :

Product introduction:

The new version of SR04T-V3.0 recently released solves the problem of blind data jumps and improves the stability of the product. JSN-SR0T4-V3.0 ultrasonic ranging module can provide 21cm-600cm non-contact distance sensing Function, ranging accuracy can be as high as 3mm; the module consists of an ultrasonic sensor and control circuit integrated with transceiver. The usage of mode one is compatible with our HC-SR04 module

Features:

1. Small size and easy to use:
2. Low voltage and low power consumption:
3. High measurement accuracy;
4. Strong anti-interference;
5. Integrated closed waterproof probe with wire, suitable for wet and harsh measurement occasions

Product parameters:

Working voltage: DC: 3.0V-5.5V

Working current: less than 8mA

Probe frequency: 40kHz

The longest range: 600cm

Recent range: 20cm

Long range accuracy: ±1cm

Resolution: 1mm

Mileage angle: 75 degrees

Input trigger signal: 1. TTL pulse above 10uS; 2. Serial port sending command 0X55

Output echo signal Output pulse width level signal, or TTL

Wiring:

3-5. 5V (power +)

Trig (Control) RX

Echo (output) TX

GND (power-)

Working temperature: -20-+70 degree

Function description:6 modes
