Description :

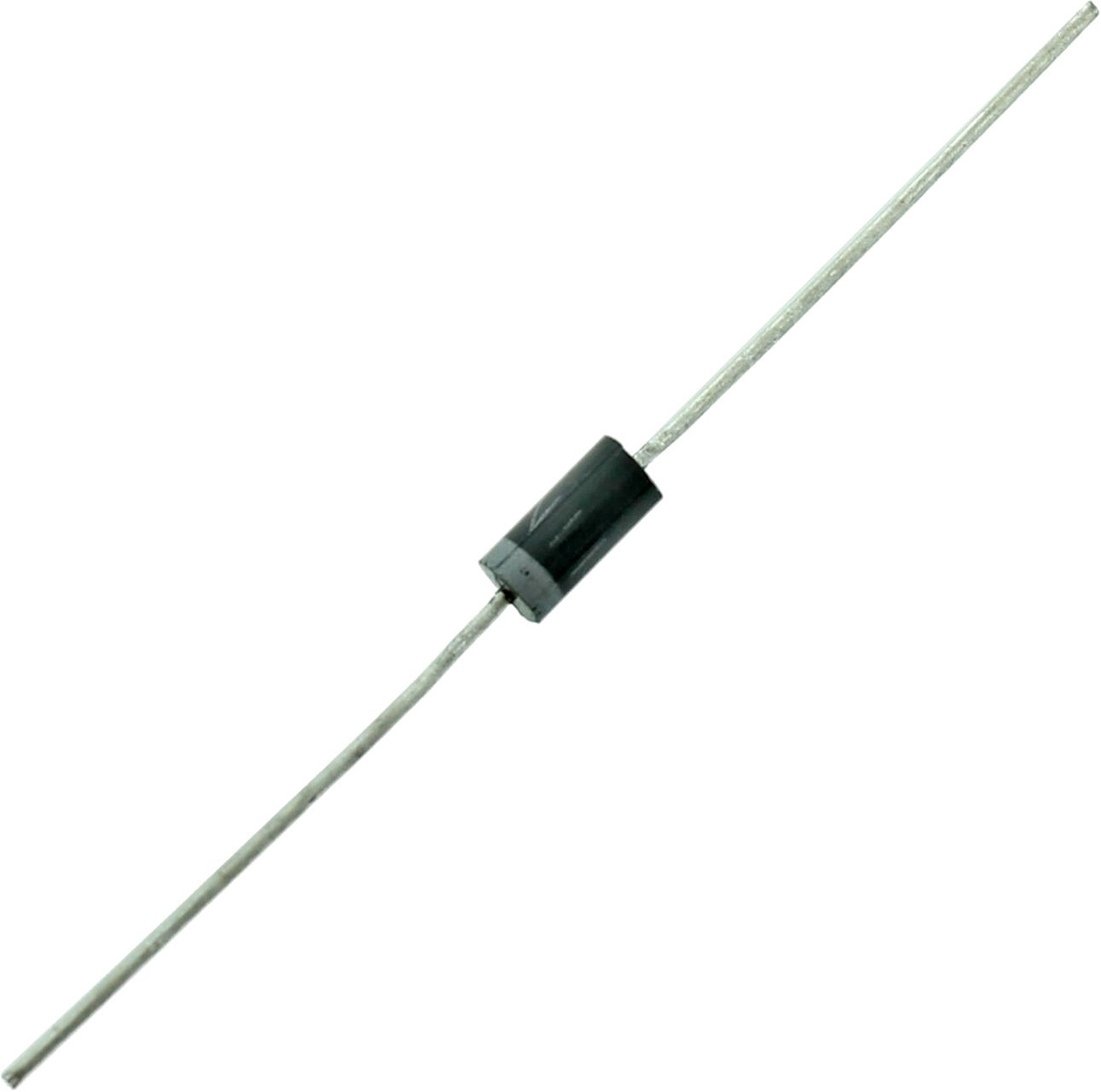

N4001 miniature ultra fast recovery diode rated at 1A suitable for use in switched mode power supplies and similar applications. Maximum reverse recovery time is just 75ns.
Specification :
- Maximum Forward Current: 1A
- Maximum Reverse Voltage: 50V
- Forward Voltage Drop: 1V at 1A
- Reverse Current: 5uA at 50V
- Maximum Operating Temperature: 150°C
- Junction Temperature: -65°C to +175°C
- Storage Temperature: -65°C to +175°C
- Package Type: DO-41
