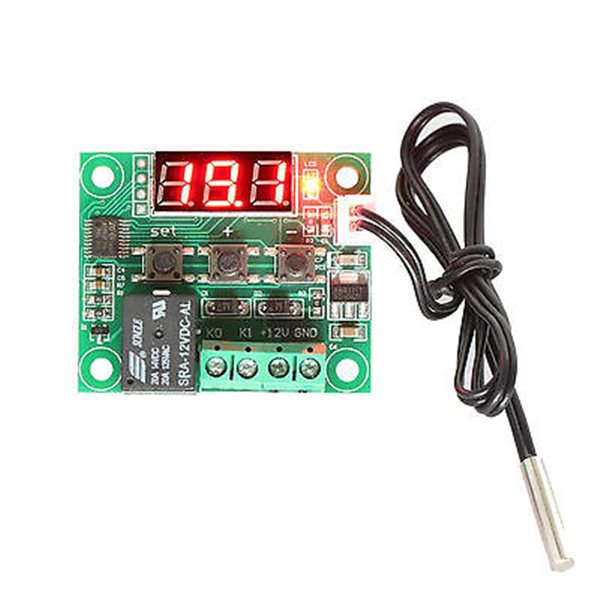

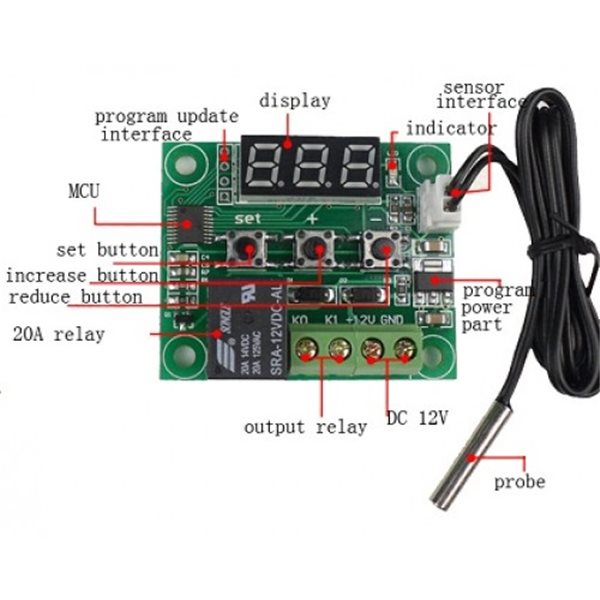

DIGITAL THERMOSTAT TEMPERATURE MODULE MODEL XH-W1209 WITH RELAY TEMPERATURE CONTROLLER

Description:

• Temperature measurement accuracy: 0.1 ℃;
• Control accuracy: 0.1 ℃;
• Backlash accuracy: 0.1 ℃;
• Refresh rate: 0.5 S;
• High Temperature Protect:  0 ~ 110 ℃;

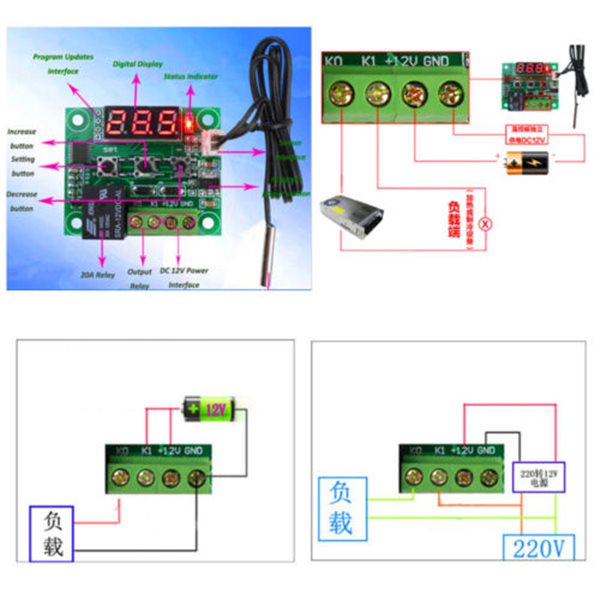

• Motherboard Power Supply: DC 12V;

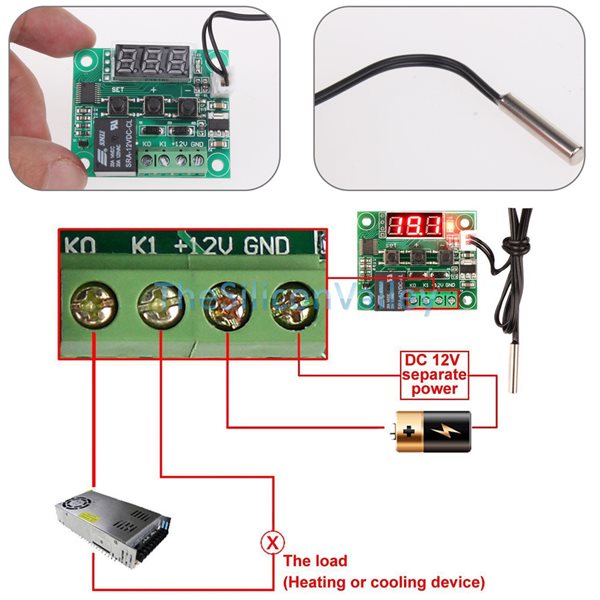

• Output: 1 channel relay output, capacity=10A;
• Measurement input: NTC (10K 0.5%) Waterproof sensor;
• Environmental requirements: -10 ~ 60 ℃ Humidity 20% -85%;
• Size: 48 * 40mm;
• Power consumption: Quiescent Current: ≤35MA;

Features:

Code mode parsing: - P0 :Cooling / Heating; Range: C/H; Default: C - P1 :Hysteresis Setting; Range:0.1-15; Default: 2 - P2 :Highest Setting Limit; Range:110; Default: 110 - P3: Lowest setting Limit; Range:-50; Default: -50 - P4 :Temperature Correction; Range:-7~7℃; Default: 0℃ - P5: Delay Start Time; Range:0-10 Minute; Default: 0 - P6: High Temperature Alarm; Range:0-110; Default: Off
