Description:

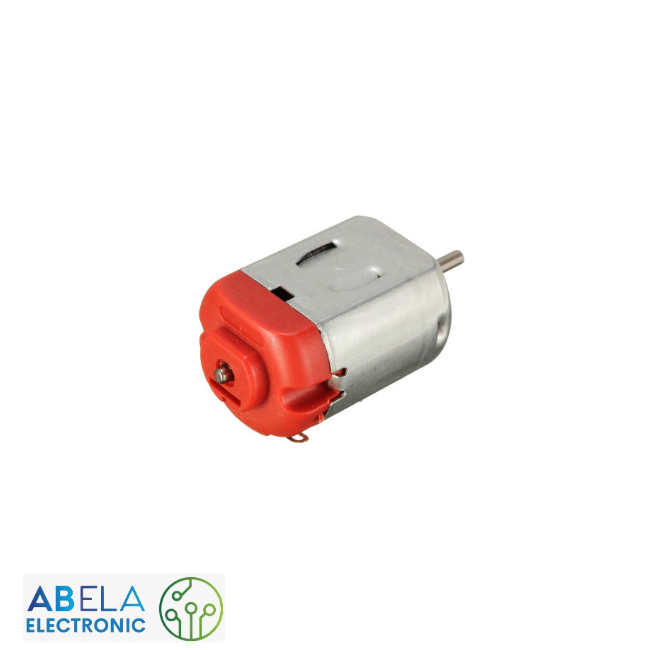

DC Hobby Motor Micro Motor Toy Motor DC Motor Type 130 for Robotic VEG92 P
Name:130 motor
Axial length:8mm
Diameter of axle:2mm
Specification:20*15*25mm
Rated voltage: 3V
No-load speed: 8000 r / min (max)
Load current: 100mA
Stall Current: 0.7A
Weight: 17 grams
Application:used to connect to the main shaft gear and propeller, model cars, model aircraft
Specification :
- Nominal Voltage: 3V - 12V DC
- Rated Speed: 8000 RPM (no load)
- Rated Current: 0.2A
- No-load current: <0.05A (at 3V DC)
- Load current: 0.3A (at 3V DC)
- Stall current: 1.2A (at 3V DC)
- Torque: 0.05 Nm (at 3V DC)
- Shaft Diameter: 2.0mm
- Motor body length: 25mm
- Overall length: 38mm
- Weight: 16g
