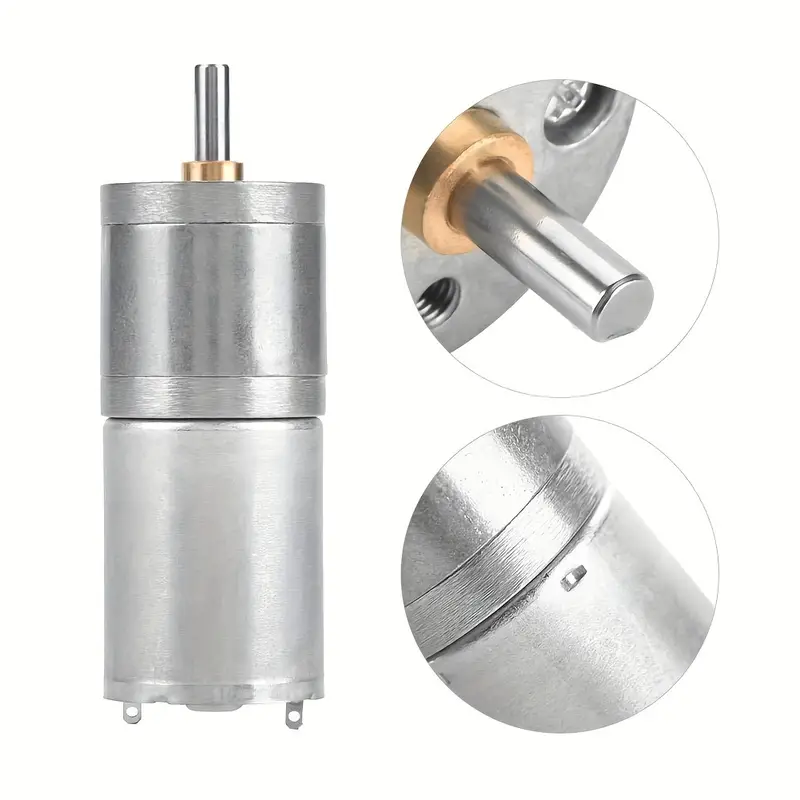

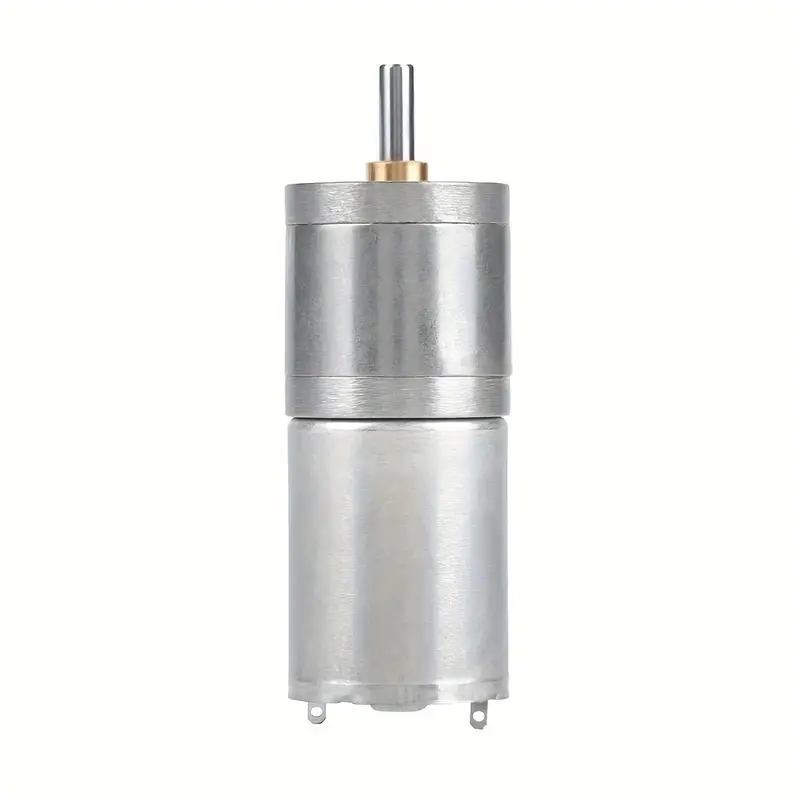

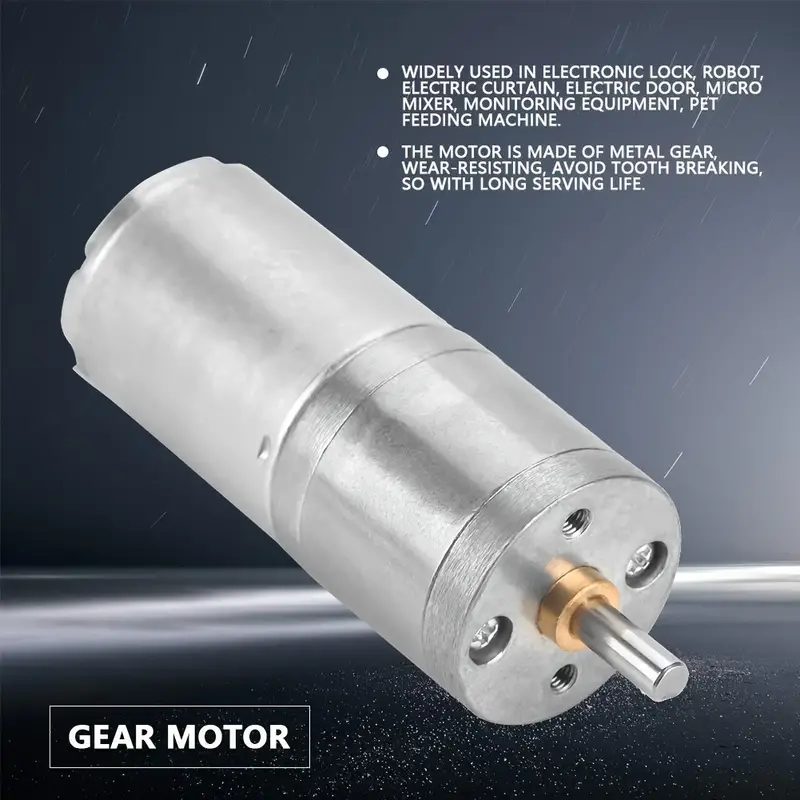

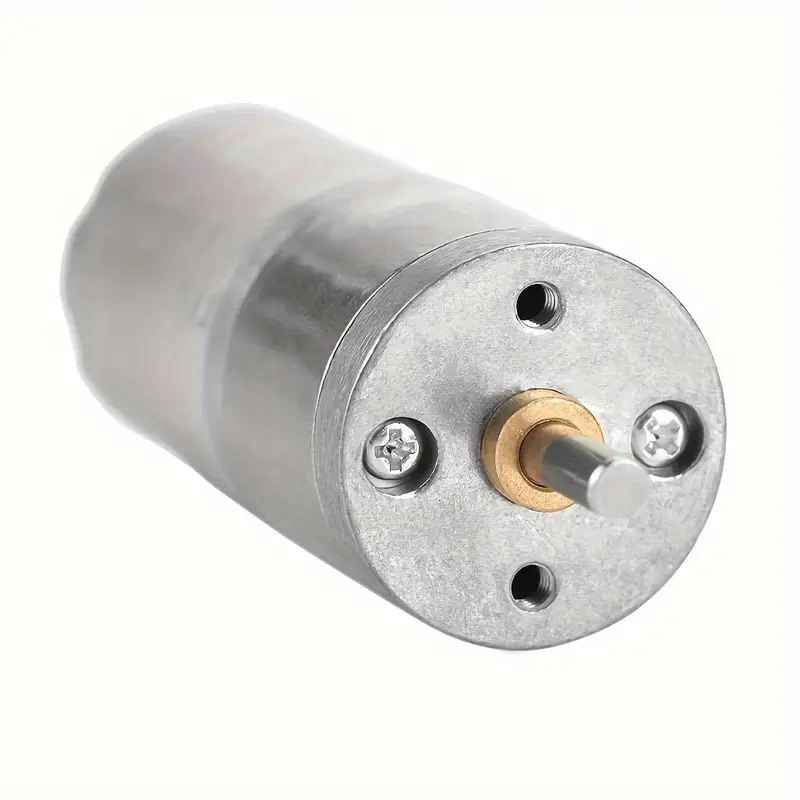

DC Gear Motor: This product is a DC gear motor with high precision metal gear, stable working. Distinguishing Features: This DC motor features large moment of force, low speed, and low noise. Full Metal Gear: The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.
Pure Copper Wire Coil: This motor is adopted of pure copper wire coil, with low heat and low loss. Wide Application: This motor is widely used in electronic lock, robot, electric curtain, electric door, micro mixer, monitoring equipment, pet feeding machine.
Pure Copper Wire Coil: This motor is adopted of pure copper wire coil, with low heat and low loss. Wide Application: This motor is widely used in electronic lock, robot, electric curtain, electric door, micro mixer, monitoring equipment, pet feeding machine.
Specification:
Model: GA25YN370
Rated power: 3.5 (W)
Product type: Brush DC Motor
Rated voltage: 5-12 (V)
Rated current: 0.06 (A)
Type:12V 60RPM

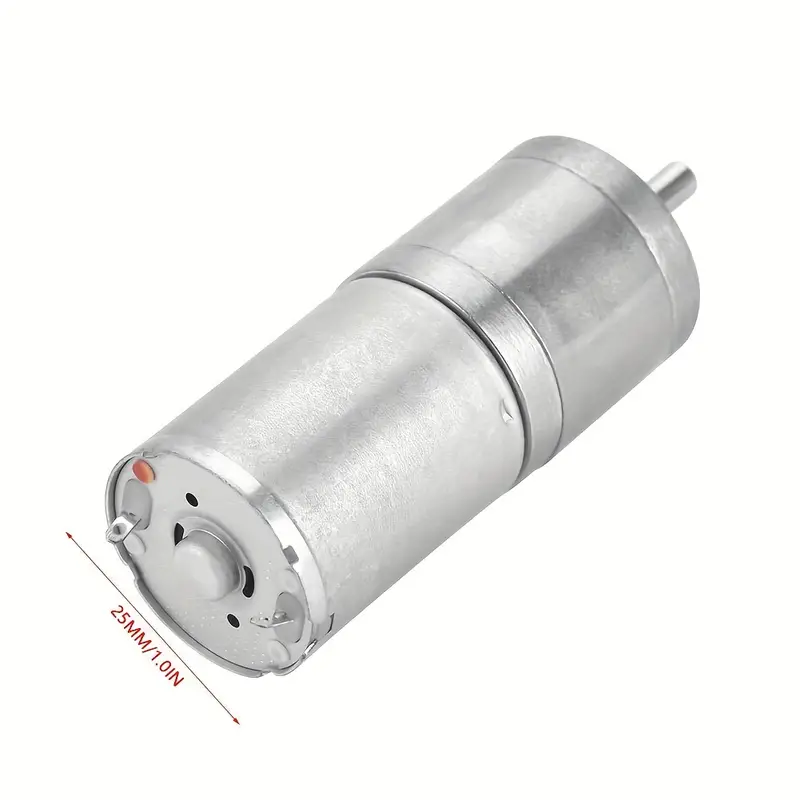

Outer diameter: 25mm/1.0in
Shaft diameter: 3 mm /0.1in
Shaft length: 10mm/0.4in
Weight: 96g/3.4oz
Voltage Gear ratio no load load Stall
speed Current speed Current toqure Current toqure
12V 1:60 60RPM 180MA 45RPM 105MA 580gf.cm 2.1A 8.8kgf.cm
Model: GA25YN370
Rated power: 3.5 (W)
Product type: Brush DC Motor
Rated voltage: 5-12 (V)
Rated current: 0.06 (A)
Type:12V 60RPM
Outer diameter: 25mm/1.0in
Shaft diameter: 3 mm /0.1in
Shaft length: 10mm/0.4in
Weight: 96g/3.4oz
Voltage Gear ratio no load load Stall
speed Current speed Current toqure Current toqure
12V 1:60 60RPM 180MA 45RPM 105MA 580gf.cm 2.1A 8.8kgf.cm
