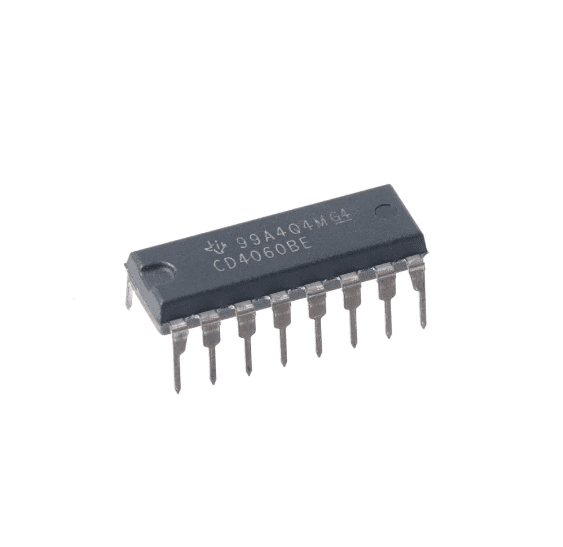

CD4060

The CD4060 is a CMOS integrated circuit that combines a 14-stage binary ripple counter with an on-chip oscillator. It is commonly used for timing, frequency division, clock generation, and delay applications. The CD4060 supports external resistor and capacitor components to set the oscillator frequency and features low power consumption, wide operating voltage range, and high noise immunity, making it ideal for clocks, timers, and control circuits.

Key Features:

• 14-stage binary ripple counter

• Built-in oscillator (requires external R and C)

• Frequency division and timing applications

• Wide supply voltage range (3V to 15V)

• Low power consumption

• High noise immunity

• Ideal for clocks, timers, and frequency divider circuits
