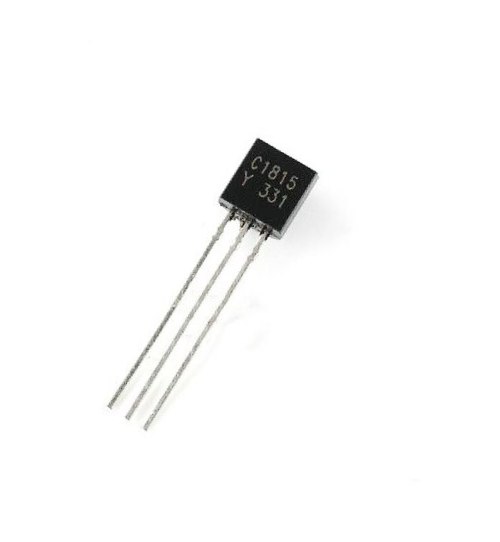

The C1815 is a 50V 150mA general purpose NPN transistor with a maximum gain value of 700. This makes the transistor suitable for amplifier applications.

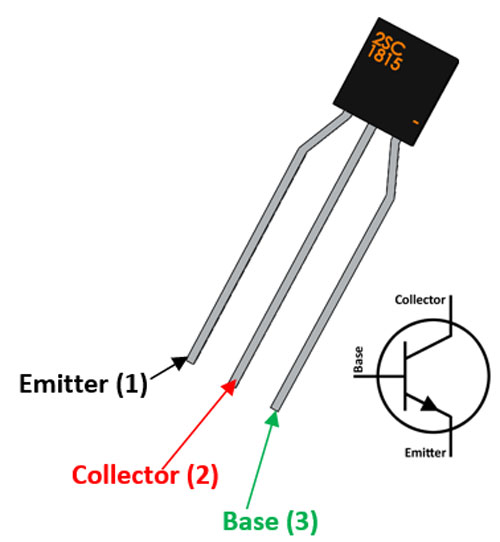

C1815 Transistor Pinout Configuration
|
Pin Number |
Pin Name |
Description |
|
1 |
Base |
Controls the biasing of transistor, Used to turn ON or OFF the transistor |
|
2 |
Collector |
Current flows in through collector, normally connected to load |
|
3 |
Emitter |
Current Drains out through emitter, normally connected to ground |
Features
- General Purpose NPN Transistor
- DC Current Gain (hFE) 70 to 700
- Continuous Collector current (IC) is 0.15A
- Collector-Emitter voltage (VCE) is 50V
- Collector-Base voltage (VCB) is 60V
- Transition Frequency: 80MHz
- Available in To-92 Package
Equivalent NPN Transistor:
2SC2712, 2SC4116, 2SC4738
