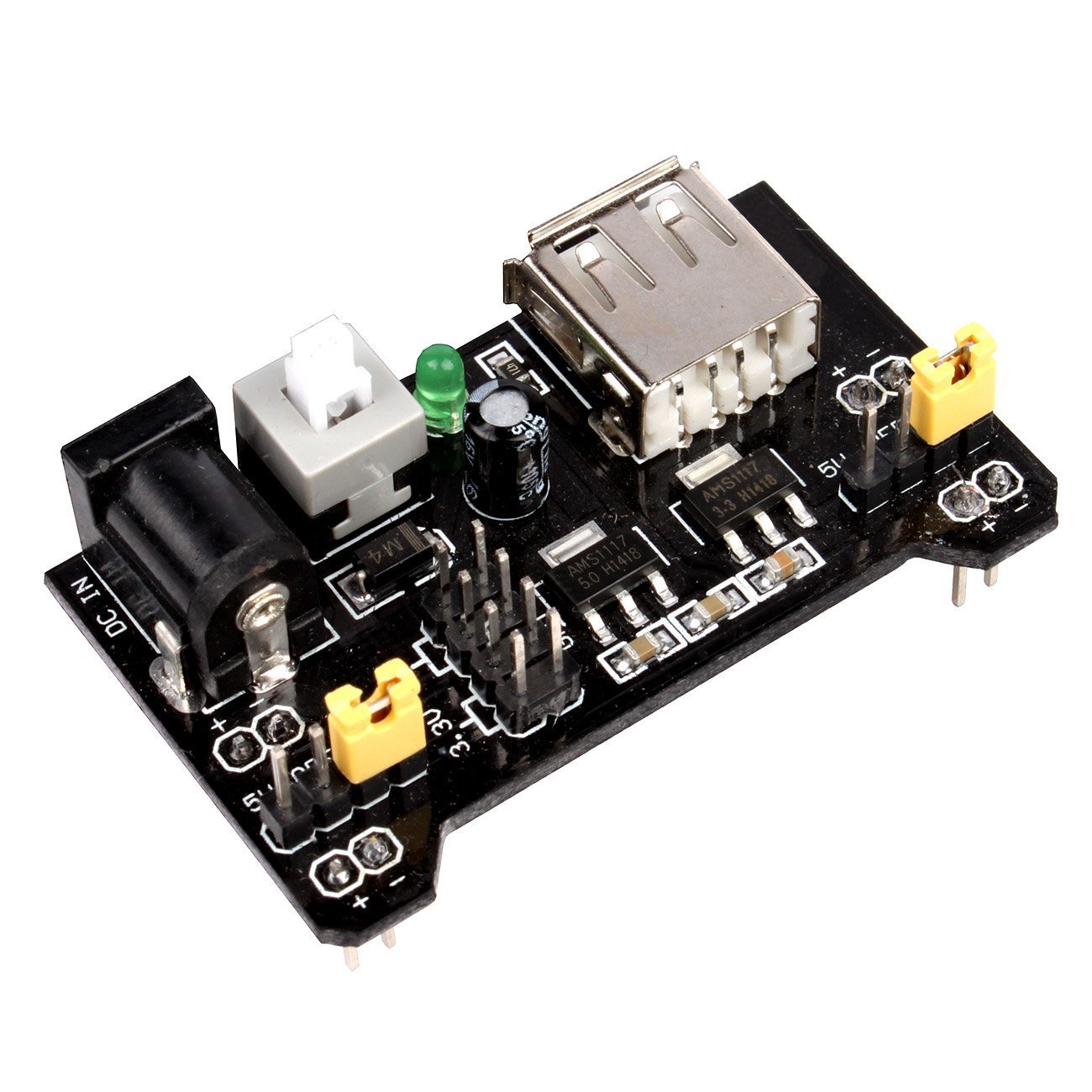

Description:
The board has two modes of power input.
Through USB and through a DC barrel socket.
There is a green LED to indicate the presence of powerand a latching switch to control the power to the board.
- Input voltage: 6.5 - 12V
- Two Independent Channel
- Output voltage: 5V, 3.3V (adjustable via jumpers. 0V, 3.3V, and 5V configuration)
- Output current: Maximum output current 700mA
- Onboard berg male header for GND, 5V, 3.3V output
- ON-OFF Switch available.
- USB (Type-A) input available.
- DC Barrel Jack input available.
- Onboard power LED
- Dimension: 53mm x 33mm (L x W)
