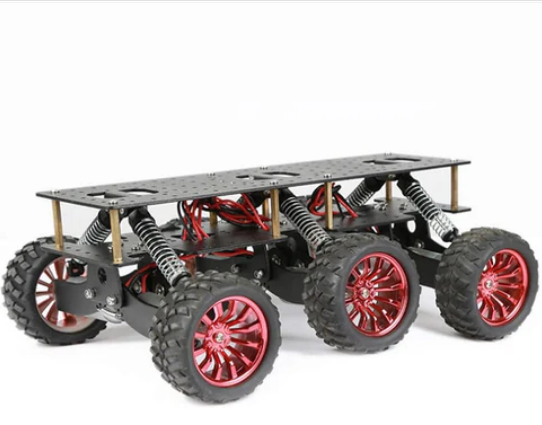

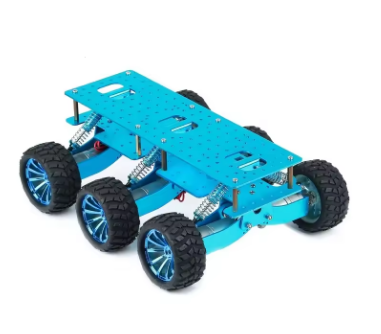

The new design of the 6WD mobile platform, the vehicle uses 2mm aluminum alloy, aluminum spray surface treatment. 6 high-speed DC motor (original 17000 rpm), with 1:34 full metal gear box, so that the car to obtain strong off-road performance.
Shock absorption design is the highlight of the car, the use of 6 damping shock absorber fixedly connected to the body to the car, so that the platform for better roadability, especially for some complex bumpy road.
6WD mobile platforms can be installed with different types of control boards or controllers such as Arduino or Raspberry Pi. The upper chassis uses a 3mm mounting hole, horizontal 12mm, vertical 14mm pitch can be a wide range of mounting a wide range of sensors, or additional expansion of other functions, such as the installation of a robot. The upper floor reserved Arduino platform, raspberry pie platform installation holes.
Features
- Simple mechanical structure and easy installation.
- Smart robot car with code disc and ideal for DIY.
- Using for code learning, cause this chassis can work with many control kit.
- Realizing functions of tracing, obstacle avoidance, distance testing, speed testing, wireless remote control when used with other devices.
Dimensional Drawing
