CD74HC4067 High-Speed CMOS 16-Channel Analog Multiplexer ADC Module
In stock
JOD 4.000 JOD 6.000
Description

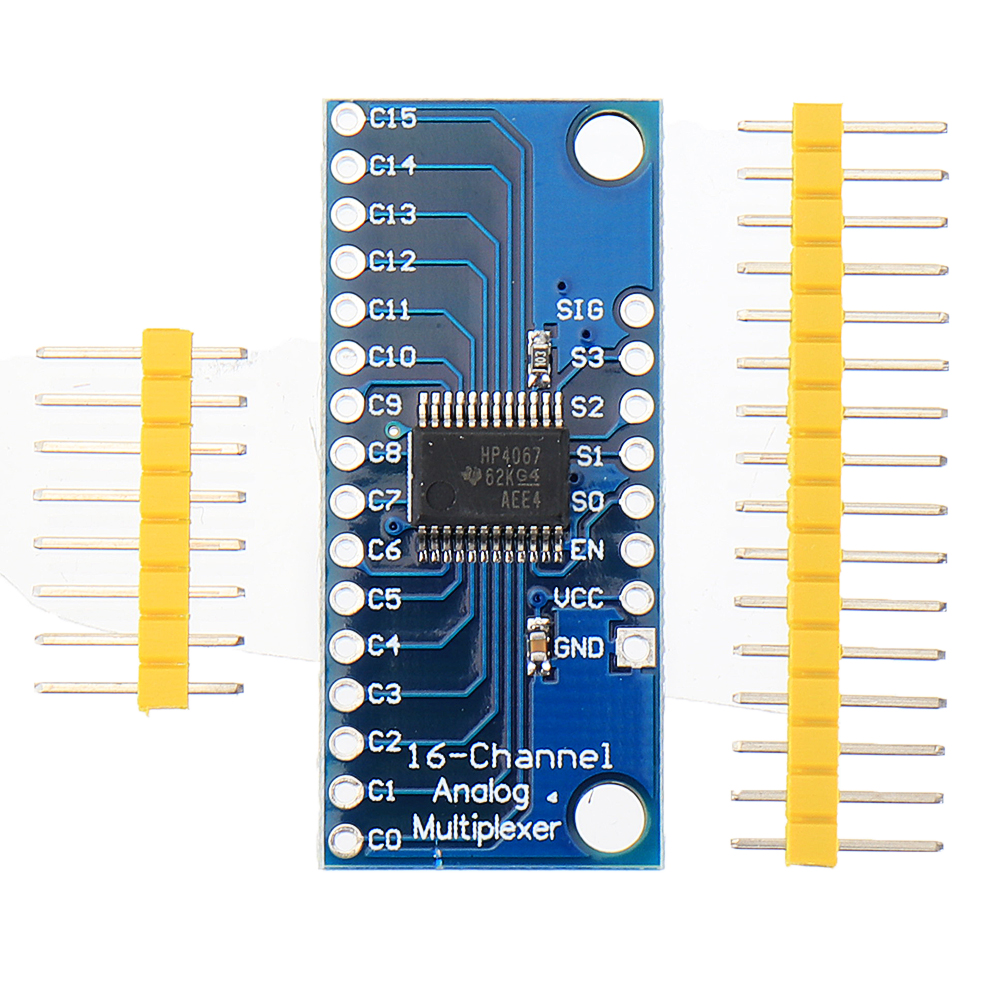

This is a breakout board that mounts a 74HC4067 which is a 16-channel analog multiplexer/demultiplexer that can route both analog and digital signals in both directions.
Technical Specification:
- Operating Voltage: 2V to 6V
- Operating Temperature: -55°C to 125°C
- PCB Size: 40mm *18mm(L*W)
Features:
- "On" resistance: 70 Ohms @ 4.5V
- 6ns break-before-make @ 4.5V
Applications:
- Servo Motor Controls
- Process Controllers
