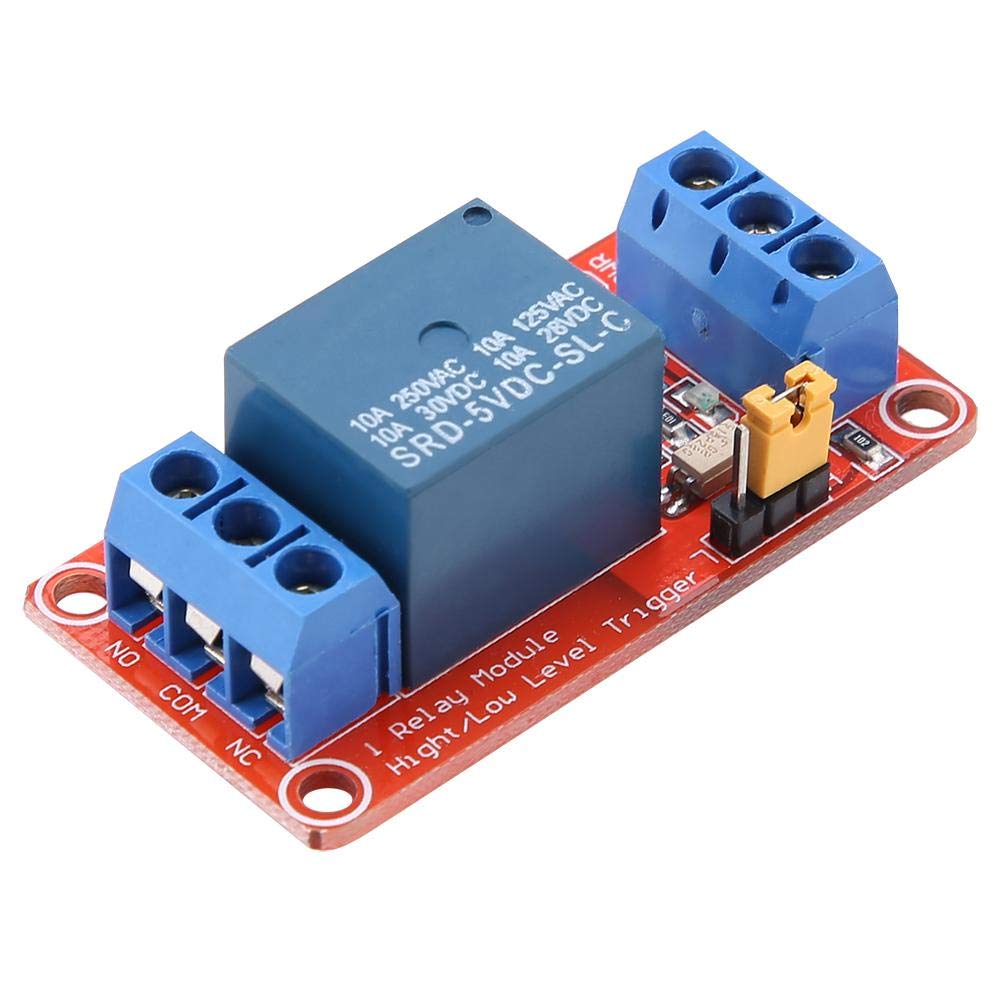

5V/12V Relay Module 1 Channel Relay Board with Opto-Isolated High or Low Level Trigger for Raspberry Pi and Arduino

DESCRIPTION

5/12v 1-channel relay modules that work with Arduino, ESP32, ESP8266, Raspberry Pi, or any 5V or 3.3V microcontroller. A single package includes 3 pieces of relay modules.

SPECIFICATION

•
  Normally open and normally closed.
•
  High-level trigger or low-Level trigger selection by a jumper.
•
  Optocoupler isolation.
•
  Terminal blocks for both input and output.
•
  Two LED indicators: power (green LED), the relay status (red LED).
•
  Fault-tolerant design, even if the control line is broken, the relay will not operate.
•
  Operating voltage (power): 5/12V
•
  Trigger voltage: 3.3V to 5/12v.
•
  Trigger current: 5mA.
•
  Maximum load: AC 250V/10A, DC 30V/10A
•
  Dimension: 50mm x 26mm x 18.5mm (L x W x H).
