- Contact Material: Copper Alloy
- Termination Type: Solder
- Mounting Type: PCB Mount
- Power Mode: Room electrical/hard wiring
- Operating Voltage: ≤36V
- Battery Properties: Without Battery

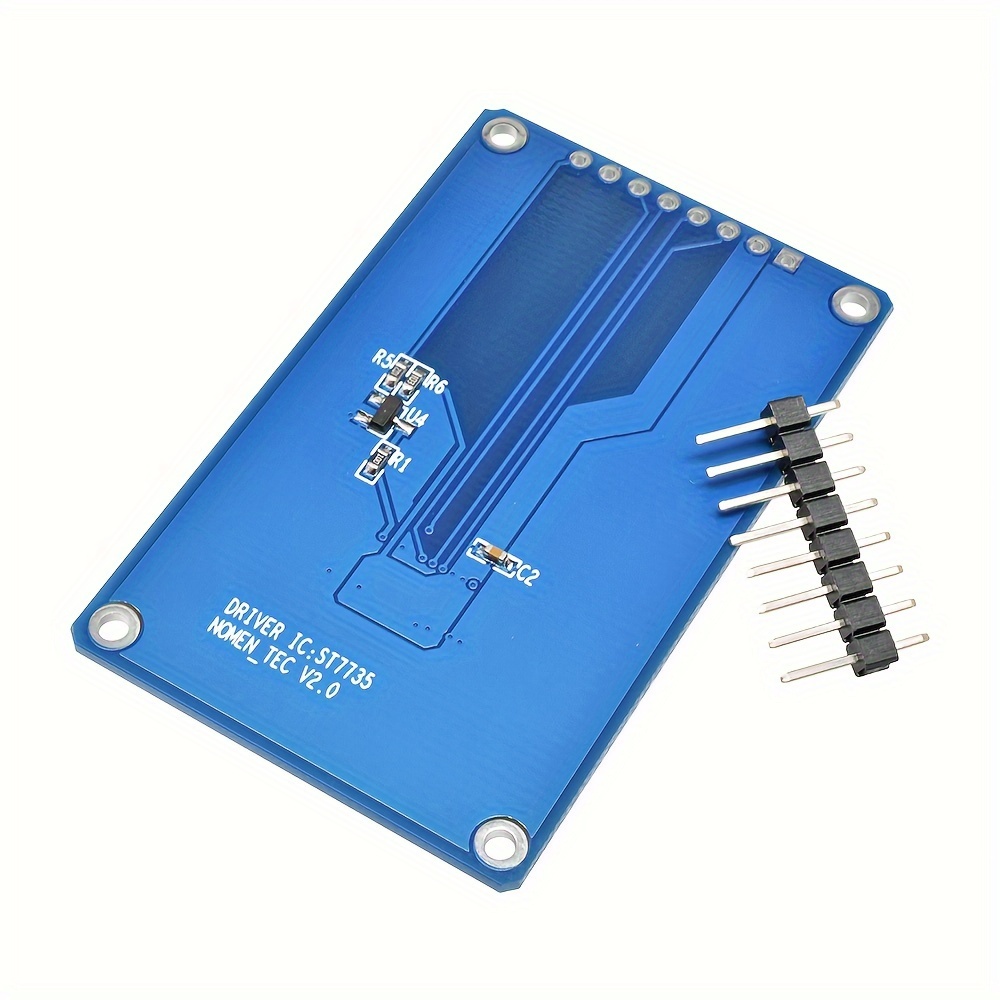

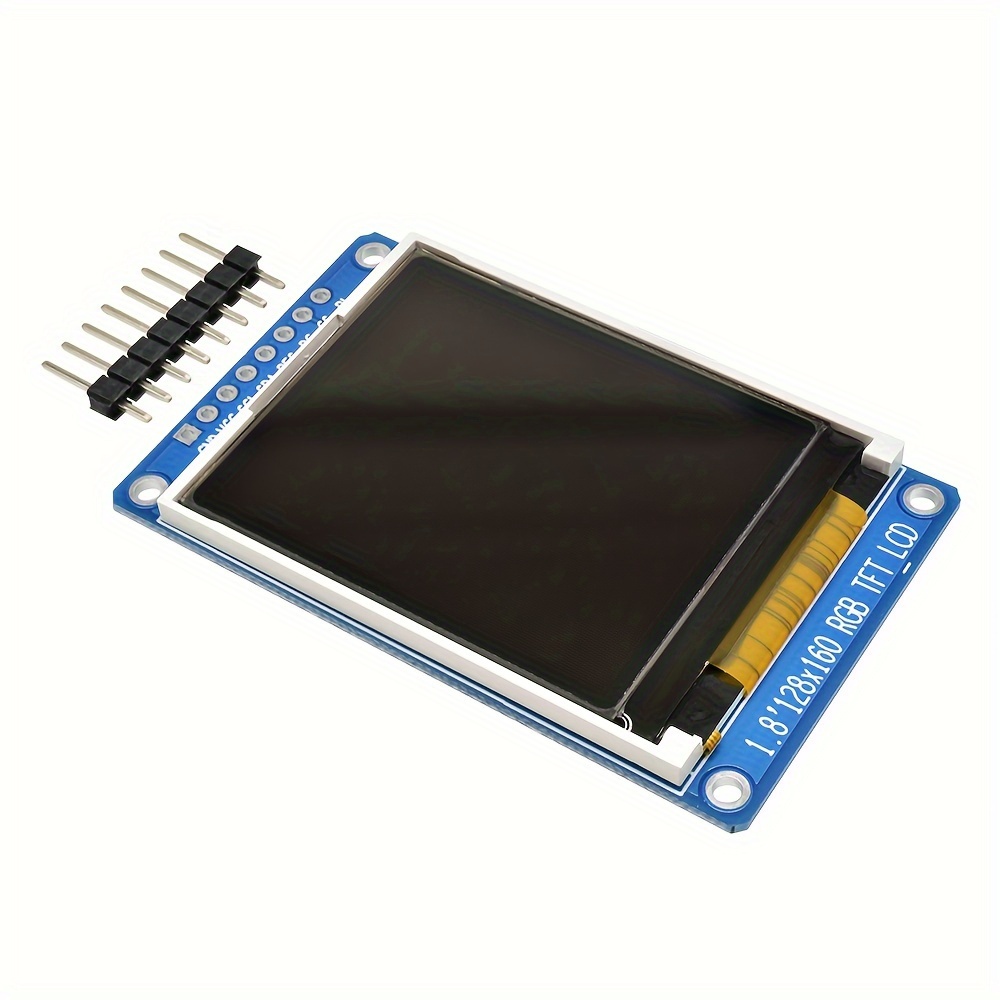

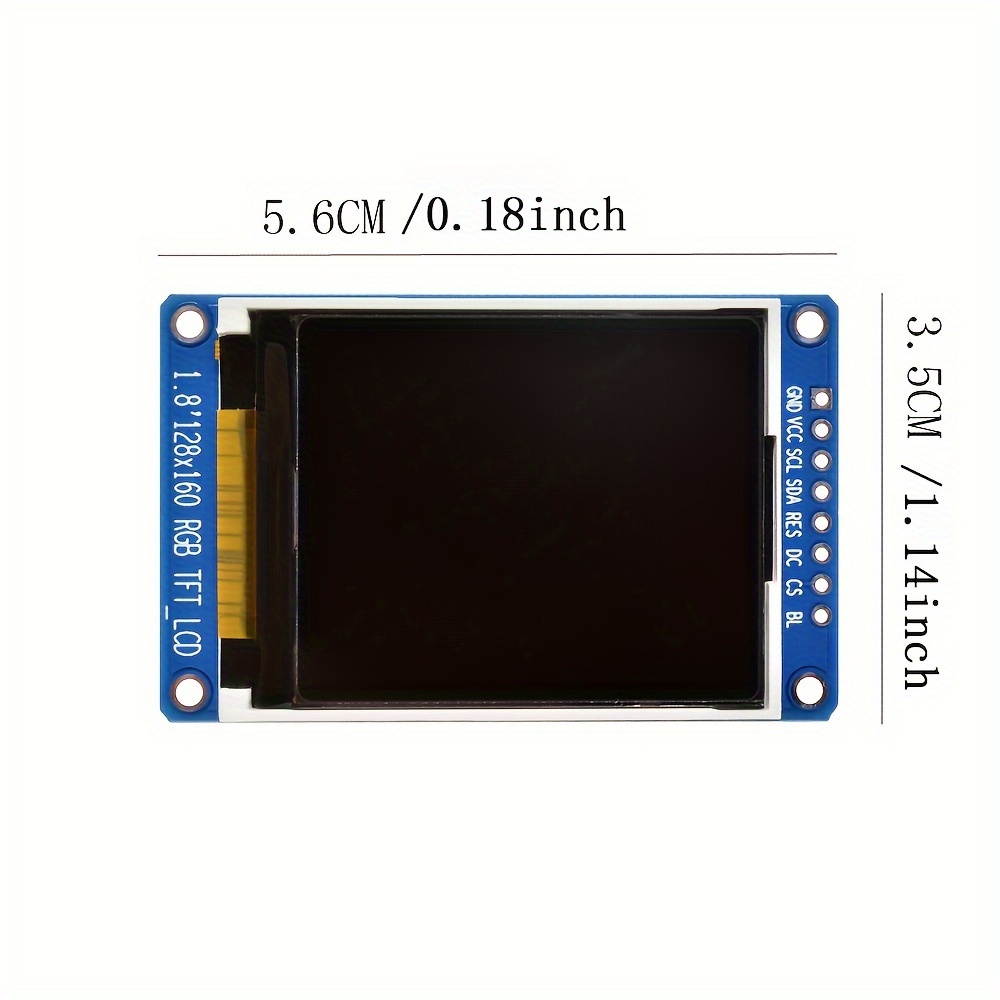

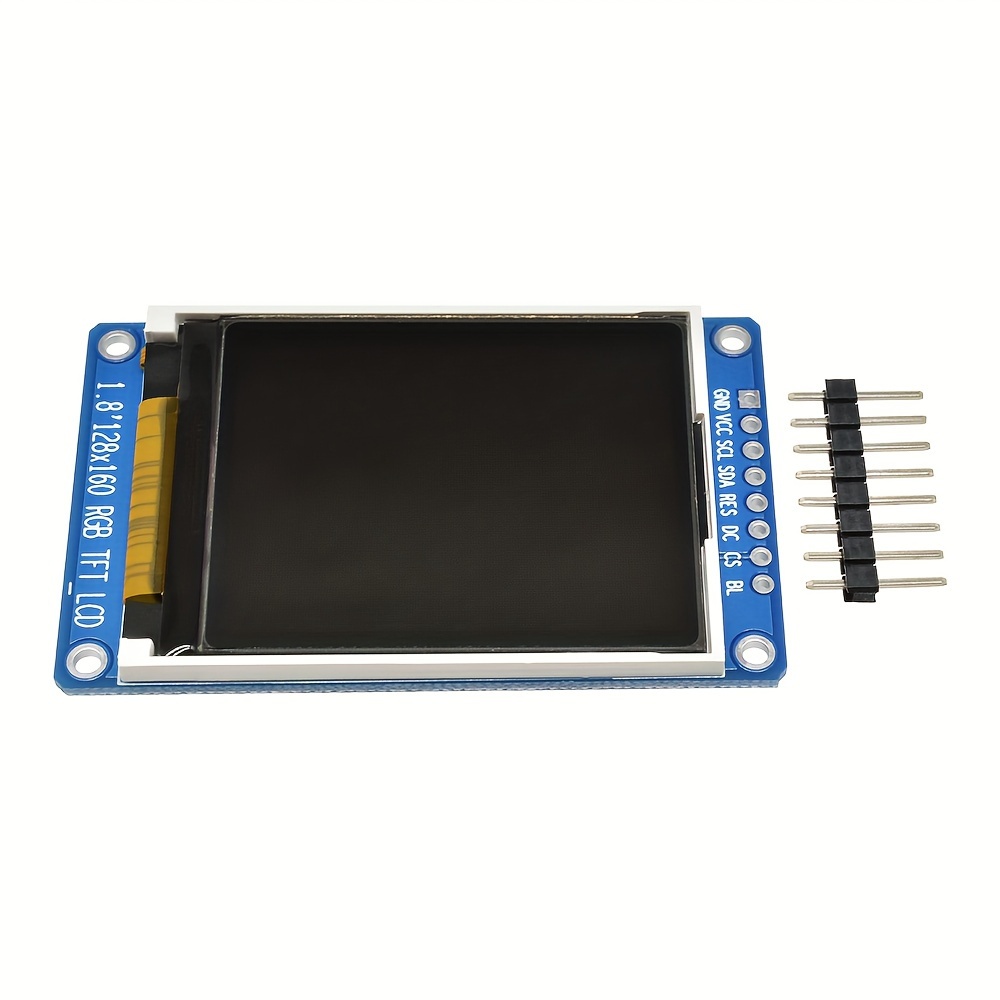

1.8 inch Full Color 128x160 SPI Full Color TFT LCD Display Module ST7735S 3.3V Replace OLED Power Supply for ArduinoProduct parameters: Size :1.8 inchesDisplay mode: a-TFTDisplay format: Graphics 128RGB * 160 point matrix Input data SPI interface driver IC ST7735SOverall dimensions: 35 (W) * 56 (H) * 3.45 +/- 0.1 (T) mmResolution: 128RGB * 160 pointsDisplay dimensions: 28.03 (W) * 35.04 (H)Pixel dimensions: 0.219 (W) * 0.219 (H)Temperature range: -20 ~ 70°C2.Symbol for PIN description: PIN codeInstructions:1.GND ground2. VCC power supply3. 3V3 SCL serial clock pin.4.SDA serial data input5. RES LCM reset pin This pin is the reset signal input.When the pin is low voltage, chip initialization is performed. Keep this pin high during normal operation.6. DC data/Command Control7 CS chip Select 8 BLK backlight control pinPacking list:1 x 1.8 "TFT LCD SPI serial port module
