Description :

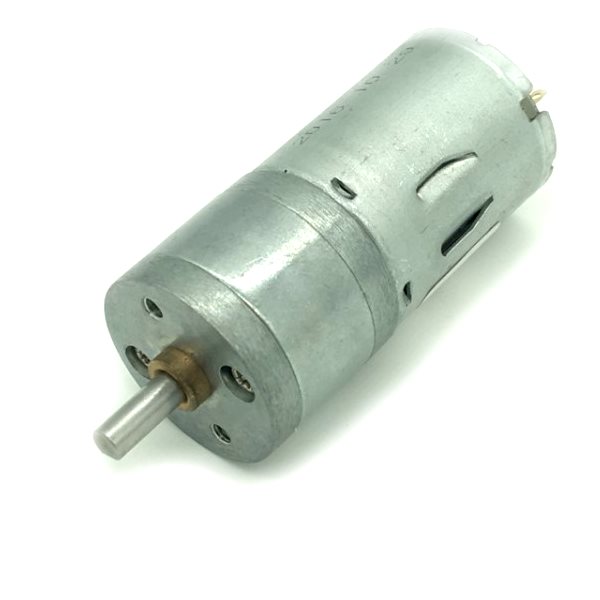

The 25GA-370 DC motor is a small and powerful motor with a diameter of 25mm and a length of 70mm. It has a 12V voltage rating and a no-load speed of 130 revolutions per minute (RPM). The motor has a maximum torque output of 1.6kg/cm (0.16 Nm).
The motor has a 4mm diameter output shaft, which makes it compatible with a wide range of mechanical systems. The shaft is also made of durable materials, which ensures that it can withstand a high level of stress and torque.
The 25GA-370 DC motor is ideal for use in a range of applications, including robotics, automation, and small-scale machinery. It is known for its high reliability, efficiency, and durability, making it a popular choice among engineers and hobbyists alike.
Overall, the 25GA-370 DC motor is a high-quality and versatile motor that is suitable for a range of applications that require low-speed and high-torque output. Its small size and powerful performance make it an ideal choice for small-scale mechanical projects that require precision and reliability.
Specification :
- Model: 25GA-370
- Voltage: 12V DC
- No-load speed: 130 RPM
- No-load current: 0.07A
- Rated speed: 100 RPM
- Rated current: 0.15A
- Rated torque: 0.8kg/cm (0.078 Nm)
- Stall torque: 1.6kg/cm (0.157 Nm)
- Shaft diameter: 4mm
- Shaft length: 13mm
- Motor dimensions: 25mm diameter, 70mm length
- Weight: 125g
