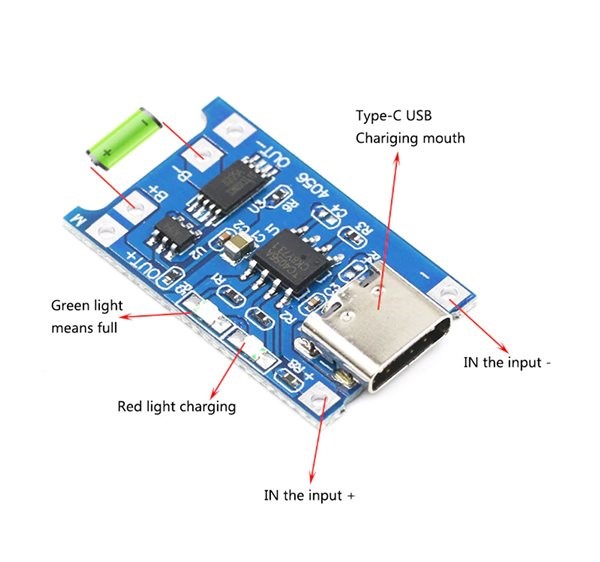

Description:
This module is made for charging rechargeable lithium batteries using the constant-current/constant-voltage (CC/CV) charging method. In addition to safely charging a lithium battery the module also provides necessary protection required by lithium batteries. See below concerning the protection features this module provides.
Features:
SPECIFICATIONS
- Chemistry: Lithium-Ion (Li-Ion)/ Lithium-Ion Polymer (Li-Po)
- Charge Controller: TP4056
- Protection IC: DW01A
- Charge/Discharge Control MOSFET: FS8205A
- Charge Method: Constant-Current/Constant-Voltage (CC/CV)
- Input Supply Voltage: 4.5~6.0 V
- Constant Charge Current: 1 A
- Configurable with Rprog resistor (R3, see diagrams and TP4056 datasheet)
- Charge Complete (Float) Voltage: 4.2 V ±1.5%
- Overcharge Protection
- Overcharge Detection Voltage: 4.3 V ±50 mV
- Overcharge Release Voltage: 4.1 V ±50 mV
- Over-Discharge Protection
- Over-Discharge Detection Voltage: 2.4 V ±100 mV
- Over-Discharge Release Voltage: 3.0 V ±100 mV
- Overcurrent Protection
- Overcurrent Protection Threshold: 3 A
- Overcurrent Cutout Delay: 10~20 ms
- Short-Circuit Cutout Delay: 5~50 µs
- Trickle Charge (Battery Reconditioning)
- Trickle Charge Threshold Voltage: 2.9 V ±0.1 V
- Trickle Charge Current: 130 mA ±10 mA
- Dimensions: 29x17.3x4.3mm
- Weight: 1.6g
Kit include:

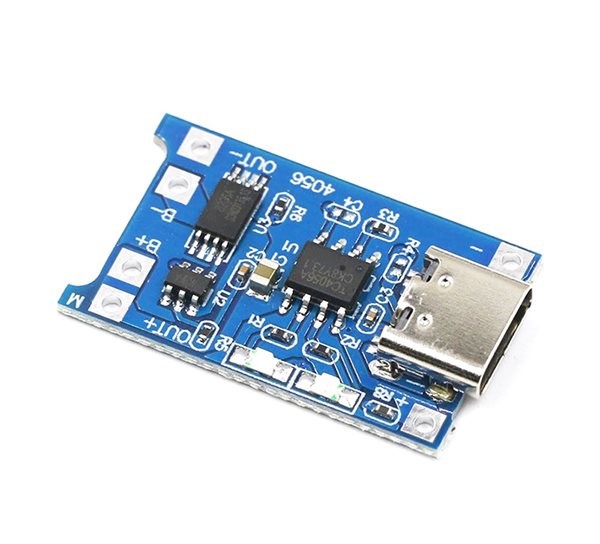

1 x Lithium Battery Charger and Protection Module 1A USB-C - TP4056
