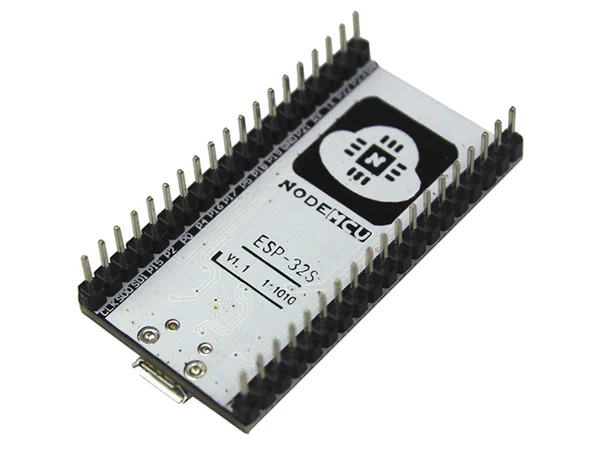

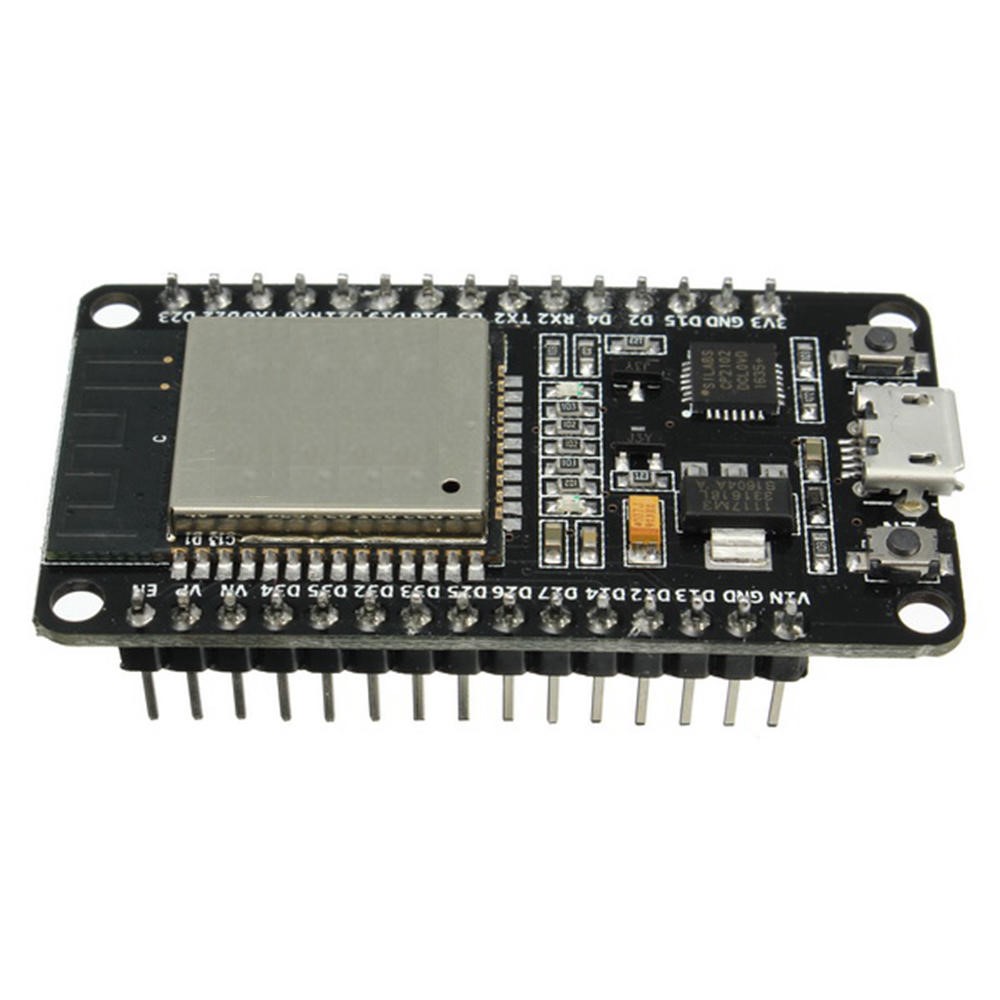

ESP-WROOM-32 ESP-32S WIFI Bluetooth Development Board （CP2102 + 30PIN + Micro）

Description of the product:

Tile ESP32-DevKitC with a built-in module ESP-WROOM-32. The module has leads in the form of gold pins, a pitch of 2.54 mm. The system from the family ESP32 for communication in a wi-fi network in the 2.4 GHz band and in the Bluetooth standard BLE / v4.2. Is powered with the voltage 5 V. The system has 30 leads along with popular interfaces i.e.: UART, SPI, I2C.

Tile with integrated ESP-WROOM-32 module. The module has leads in the form of gold pins, and a pitch of 2.54 mm. The system of the family ESP32 for a wi-fi network communication in the 2.4 GHz band and in the Bluetooth standard BLE / v4.2. It is supplied with a voltage of 5 V. The system has 30 leads along with popular interfaces, i.e.: UART, SPI, and I2C.

Key Features

• Supply voltage: 5 V – with micro USB
• Microcontroller Dual Core Tensilica LX6 240 MHz
• The SRAM 520 KB
• Flash memory: 4 MB
• Built-in wi-fi module 802.11 BGN HT40
• Wi-fi security: WEP, WPA/WPA2 PSK/Enterprise, AES / SHA2 / Elliptical Curve Cryptography / RSA-4096
• Built-in Bluetooth BLE
• Integrated Hall sensor and touch interface
• 30 GPIO leads, including:
  • 3x UART
  • 3x SPI
  • 2x I2C (2x I2S)
  • 12-channel ADC converter
  • 2 – channel DAC converter
  • The PWM outputs
• Dimensions: 53 x 28 x 8 mm (without connectors)
