Edison v2.0 - educational robot

scription: Edison v2.0 - Education robot

The Edison robot set is designed to teachprogramming andthe need to teach in STEAM fields. It is designed for children in primary schools and young people in secondary schools. It is equipped with various types of sensors, thanks to which it can react to light and sound, it can also follow lines or avoid obstacles, and it can communicate with other Edison robots. The robot can also be combined withLego blocks.

How to program an Edison robot

The Edison robot can be programmed in four different ways, depending on your level of sophistication.

1. Pre-school children program the robot using special barcodes. The robot will provide a lot of entertainment and help children to develop their logical thinking skills.
   Programming the Edison robot using barcodes.
2. Children in grades 1-3 learn programming with the block editor using pictograms. This way also works well for learning with an interactive whiteboard. Simple pick and drop programming.

   Pick up and drop programming.
3. The Ed Scratch applicationforchildren in grades 4-8 introduces serious programming. It combines graphic and text encoding. It allows you to enter terms such as variables or objects.

   Programming inEd Scratch.
4. For children over the 6th grade, there is anEdPyapplication for programming the robot in text based on the Python language. This language is very practical, used by professionals on a daily basis.


   Programming using the EdPyapplication.

Main features of the Edison robot

• It perfectly introduces children to the world of robotics and programming.
• It can be used to conduct classes in kindergartens.
• It has 4 programming modes, depending on the level of advancement.
• Allows programming in Python language.
• Durable construction, adapted to work with children.
• Compatible with Lego Technic pads.
• It can detect objects, follow the line, and respond to infrared pilot commands.

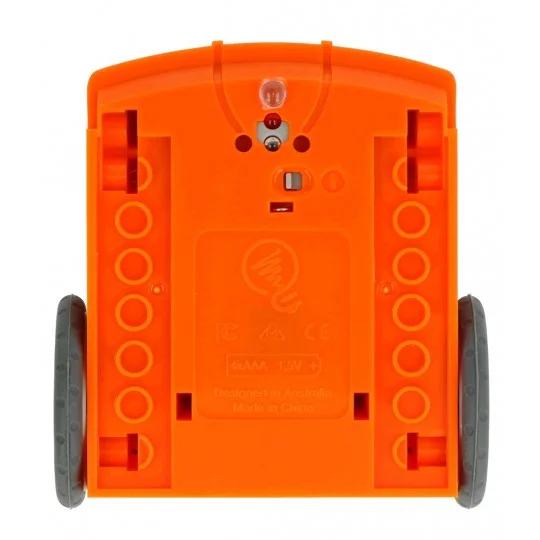

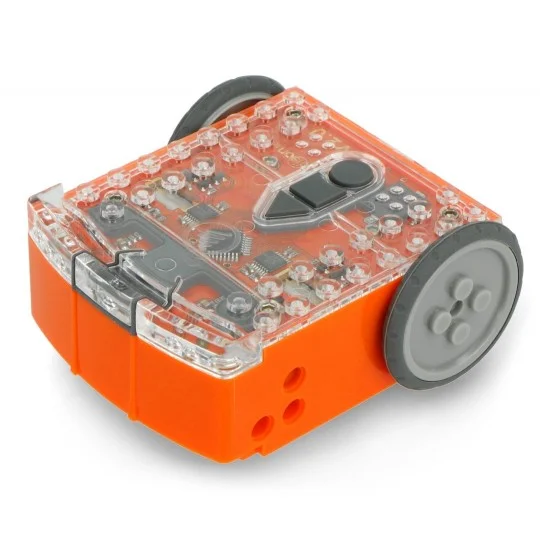

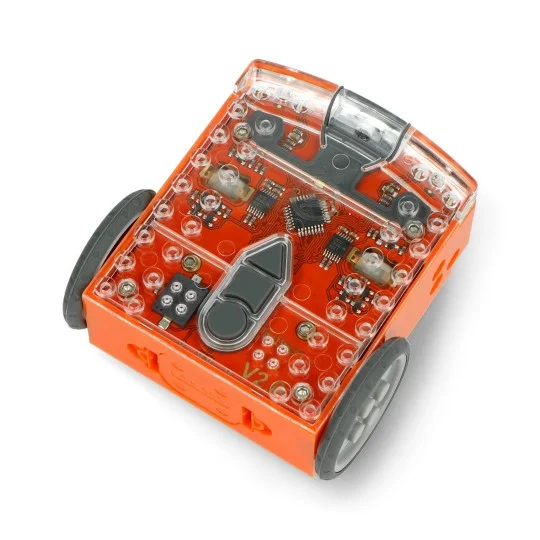

Edison education robot.

Edison robot specifications

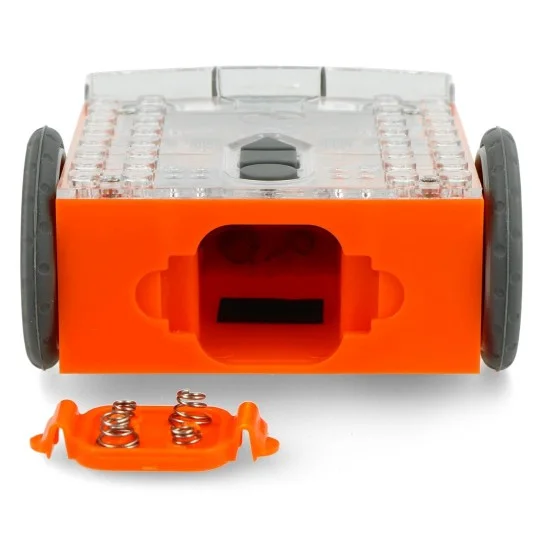

• Power supply: 4xAAAbattery(not included)
• Processor: Freescale 8-bit MC9S08PA8VLC
• Drive: differential
• Sound signalling device: piezoelectric
• LED: 2x red
• Communication: IR transmitter and receiver
• Line sensor also functions as a barcode reader and programming port
• Dimensions: 80 x 80 x 40 mm

Set contents

• Edison Robot

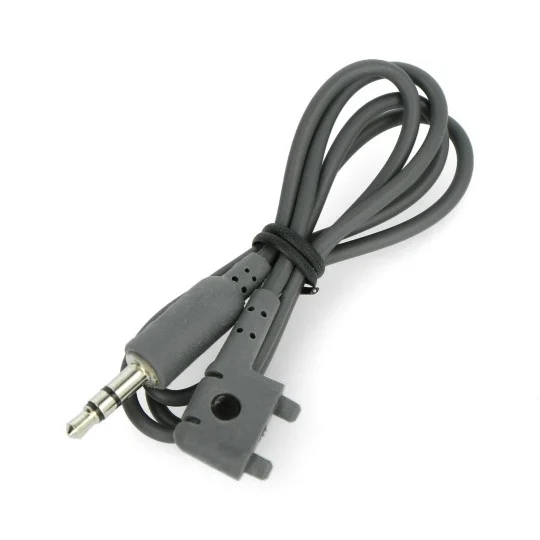

• Programming cable
