Description :
The BD243 Mini Tesla Coil Kit Electronics is a DIY kit designed for electronics enthusiasts and hobbyists to build their own miniature Tesla coil. A Tesla coil is a type of resonant transformer circuit that is typically used for wireless power transfer or to produce high-voltage, low-current, and high-frequency alternating-current electricity.

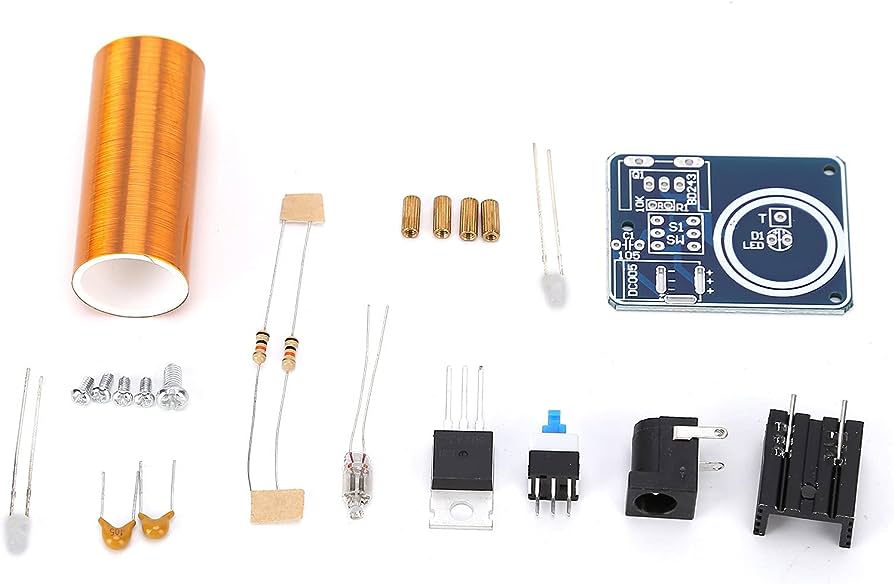

The BD243 Mini Tesla Coil Kit Electronics includes all the necessary components, including a BD243 transistor, a high-voltage capacitor, a spark gap, and a coil. The kit also includes detailed instructions on how to assemble the components, as well as how to adjust the spark gap to achieve the desired output.
Once assembled, the BD243 Mini Tesla Coil can produce a high-voltage, low-current output with a frequency range of up to 1MHz. The coil can also produce a small spark, similar to a mini lightning bolt, which can be used for educational or entertainment purposes.
The kit is designed for hobbyists and electronics enthusiasts who have a basic understanding of electronics and are comfortable with soldering and assembly. It is not recommended for beginners who are new to electronics or who are not familiar with high-voltage circuits.
Overall, the BD243 Mini Tesla Coil Kit Electronics is a fun and educational project for electronics enthusiasts who are interested in building their own Tesla coil. It is a great way to learn about high-voltage circuits and resonant transformer circuits, as well as to produce a fascinating and entertaining display of high-voltage electricity
Specification :
- Operating voltage: 12V DC
- Maximum input current: 1.5A
- Output voltage: up to 500kV
- Frequency range: up to 1MHz
- Spark length: up to 1 inch (depending on environmental conditions)
- Transistor type: BD243
- Capacitor type: High-voltage capacitor
- Coil type: Secondary coil made of copper wire
- Dimensions: 6.7 x 3.1 x 1.6 inches (17 x 8 x 4 cm)
- Weight: 6.4 ounces (181 grams).
