Adafruit FONA 3G Cellular Breakout - American version - Without Free Ting Sim Card

For those who want to take it to the next level we now have a 3G Cellular Modem breakout! The FONA 3G has better coverage, GSM backwards-compatibility and even sports a built-in GPS module for geolocation & asset tracking. This all-in-one cellular phone module with that lets you add location-tracking, voice, text, SMS and data to your project in a single breakout.

If you want the version that comes with a free Ting 2G SIM Card, click here! This version is for resellers and people who do not need a free SIM card. For 3G use in the USA, please use AT&T network as the Ting network is 2G only on this module.

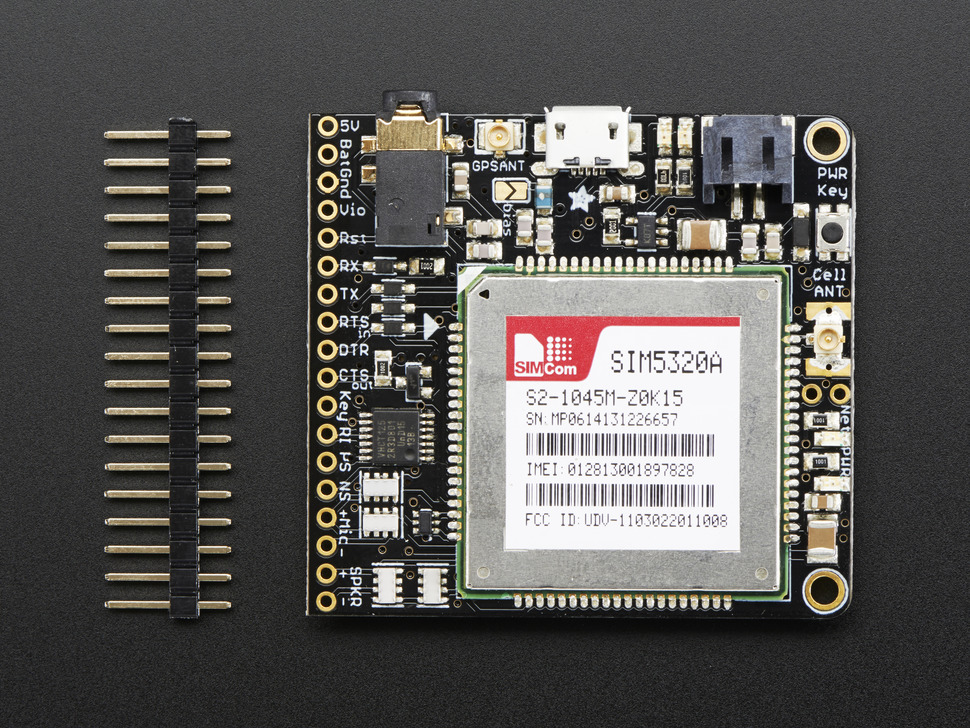

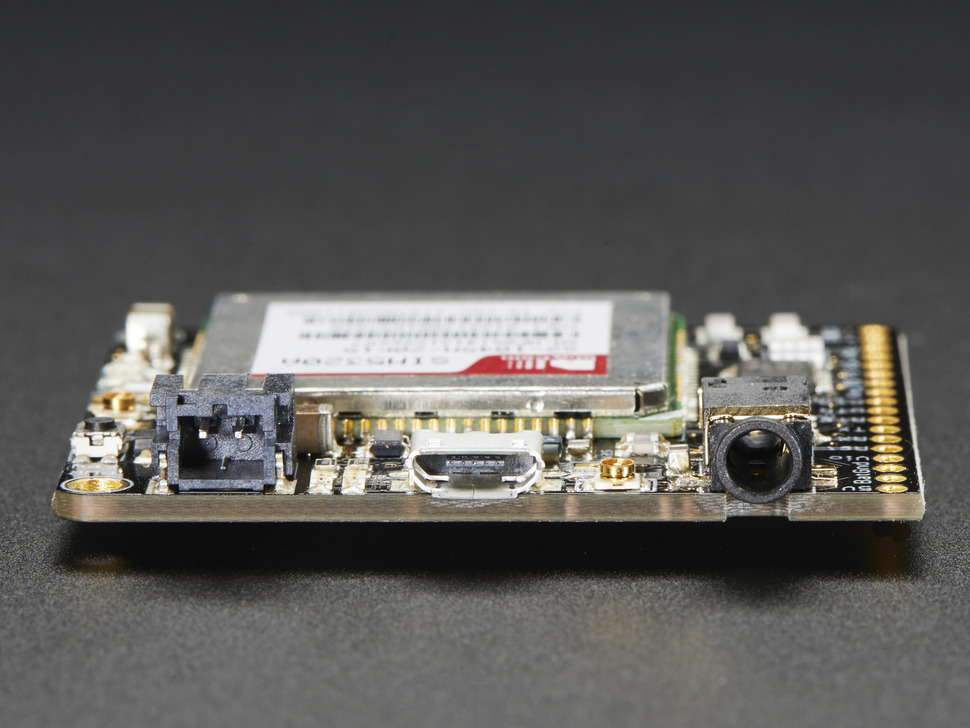

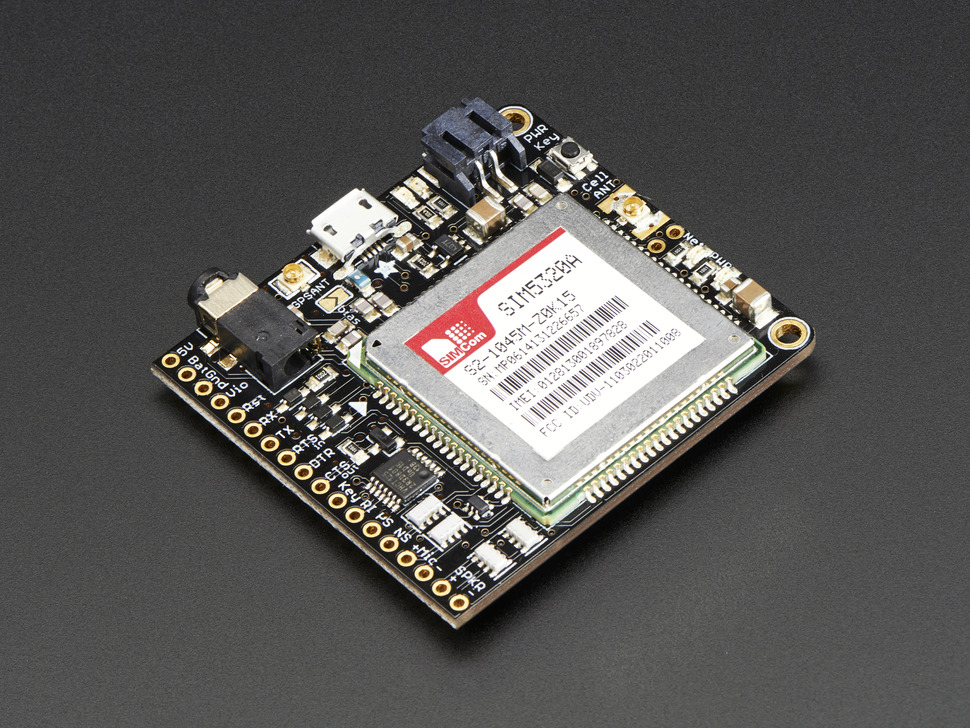

This module measure only 1.75"x1.6" but packs a surprising amount of technology into it's little frame. At the heart is a powerfull GSM cellular module (we use the latest SIM5320) with integrated GPS. This module can do just about everything

• Quad-band 850MHz GSM, 900MHz EGSM, 1800MHz DCS, 1900MHz PCs - connect onto any global GSM network with any 2G SIM.
• This is the American Version dual-band UMTS/HSDPA 850/1900MHz WCDMA + HSDPA (Click here for the European frequency band version)
• Fully-integrated GPS (Qualcomm PM8015 GPS) that can be controlled and query over the same serial port
• Make and receive voice calls using a headset or an external 8Ω speaker + electret microphone
• Send and receive SMS messages
• Send and receive GPRS data (TCP/IP, HTTP, etc.)
• AT command interface can be used with 300, 600, 1200, 4800, 9600, 19200, 38400, 57600, 115200, 230K, 461K, 961K, 3.2M, 3.7M and 4.0Mbps
• Native USB support - plug it into a computer and you'll get serial ports for GPS and

Here's the GPS specifications:

• 16 acquisition channels
• GPS L1 C/A code
• Sensitivity
  Tracking: -157 dBm
  Cold starts : -144 dBm
• Time-To-First-Fix
  Cold starts: 100s (typ.)
  Hot starts: 1s (typ.)
• Accuracy: approx 2.5 meters
