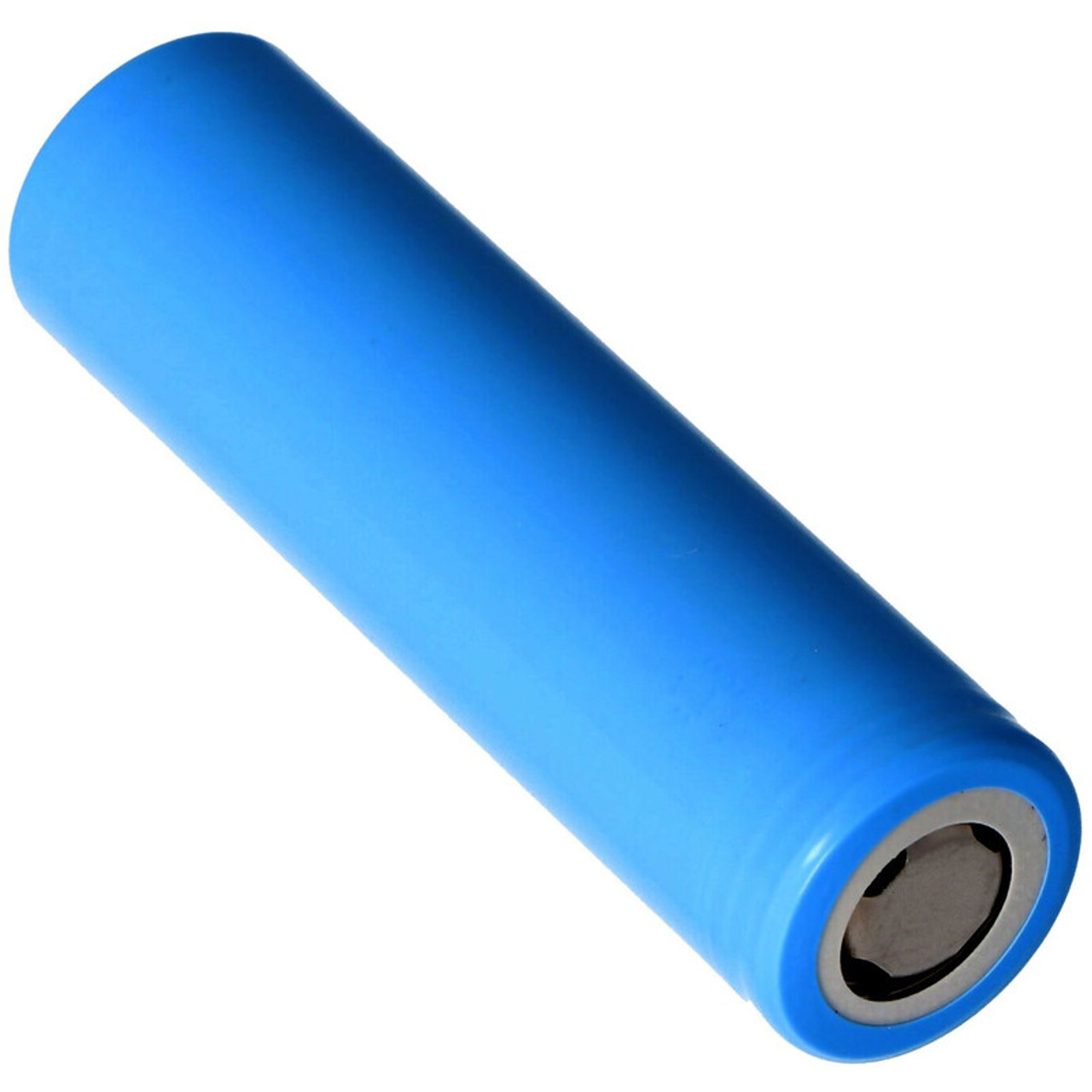

Lithium-ion Rechargeable Battery 18650 3.7V 2400MAH UP TO 4.2V

NO.

Items

Specifications

1

Charge voltage

4.2V

2

Nominal voltage

3.7V

3

Nominal capacity

2400mAh @ 1/3C Charge & Discharge

4

Charge current

Standard Charging/Discharging: 0.5C

5

Standard Charging method

0.5C CC(constant current)charge to 4.2V,

then CV(constant voltage 4.2V)charge

till charge current decline to ≤0.05C

6

Charging time

Standard Charging: 6.0hours(Ref.)

Rapid charge: 2hours(Ref.)

7

Max.charge current

0.5C(45℃≥T≥12℃)

8

Max.discharge current

1.0C

9

Discharge cut-off voltage

2.75V

10

Operating temperature

Charging: -10℃~55℃

Discharging: -24℃~60℃

11

Storage temperature

-20℃~ +45℃

12

Battery Weight

Approx: 49g

13

Battery Dimension

Height: 65.6mm Max (not including tabs)

Diameter: 18.45mm Max
